Dongfeng 4x2 12000L truck mounted mist cannon truck

Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
1 / 5
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck
Dongfeng 4x2 12000L truck mounted mist cannon truck

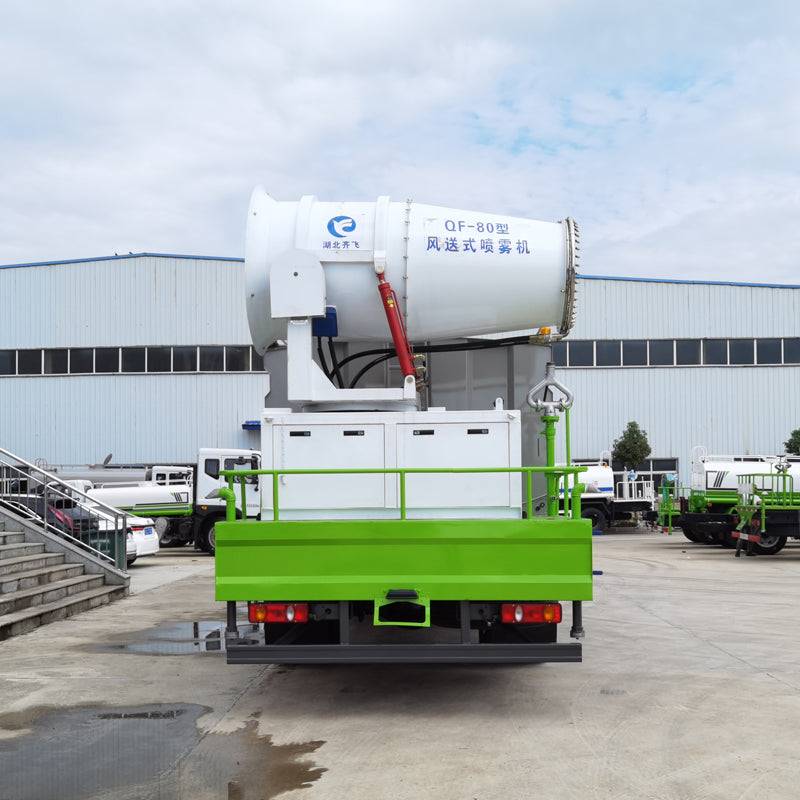

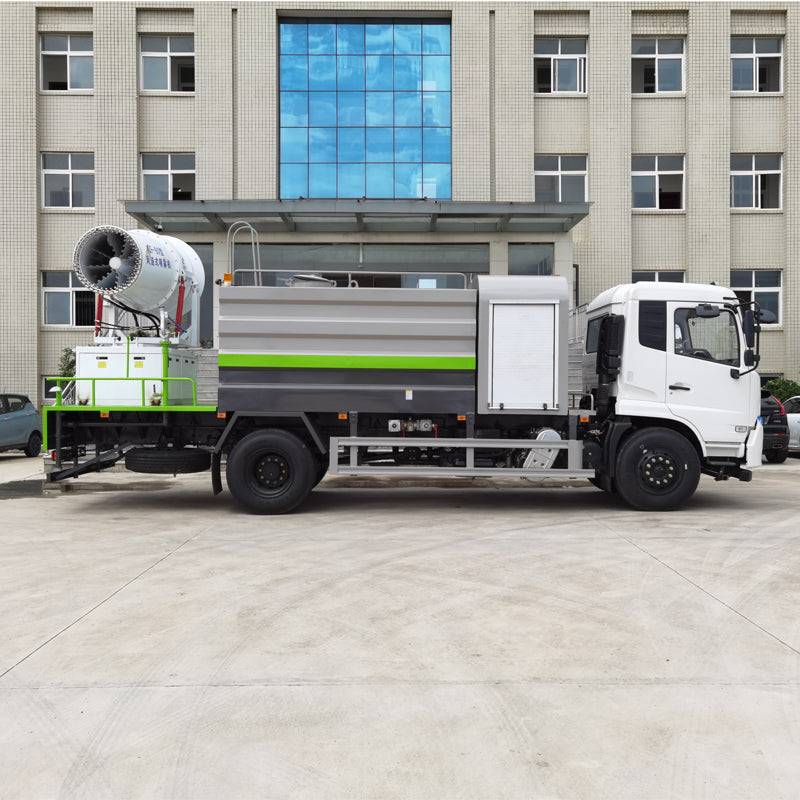

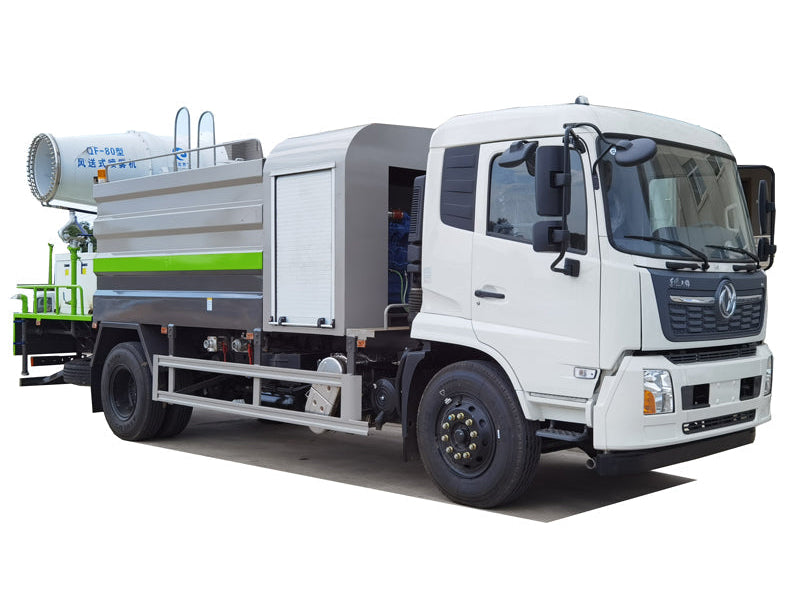

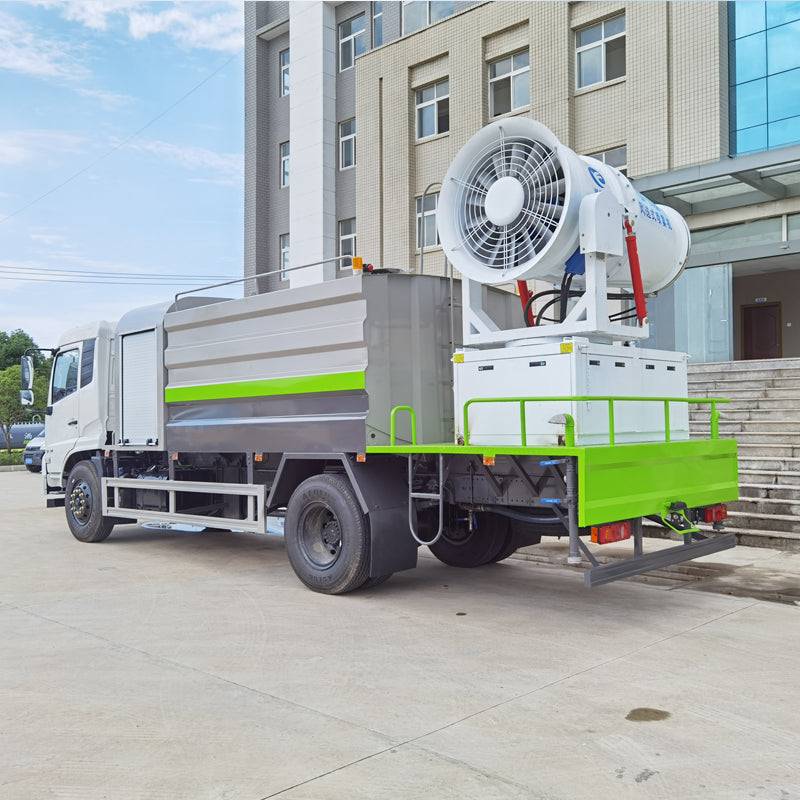

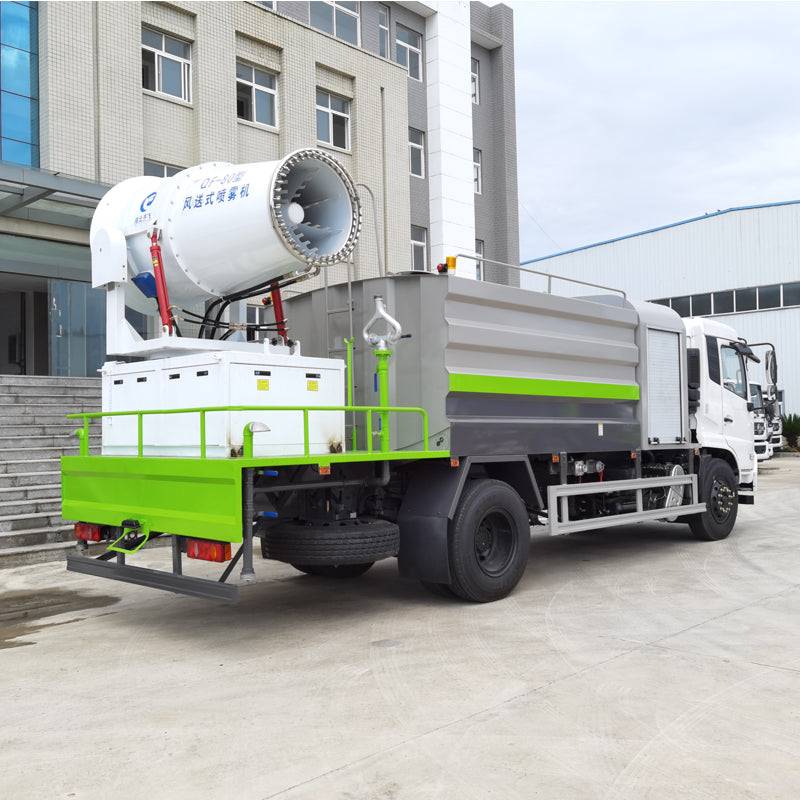

Dongfeng truck mounted mist cannon truck: front washing, rear watering, side watering, rear installation working platform, equipped with high-pressure water cannon (360 ° rotation, adjustable column, maximum range of 35 meters, adjustable fog, maximum range of 15 meters (straight, heavy rain, moderate rain, light rain, light rain can be adjusted), equipped with high-quality high-power special spray pump, microphone, debris filter, national standard universal 65 type fire interface (water can be added through fire hydrant) 2 water distribution steel wire rubber hoses. The water pump, current collector, ball valve, and filter are all national standard products. Thickened main pipe, thickened flange gasket and flange plate, large diameter ball valve, excellent performance, reliable operation, high efficiency, and large flow rate. The rear fog gun can effectively suppress haze and dust.

The water mist particles sprayed by the truck mounted mist cannon are extremely small, reaching the micrometer level. In haze weather, liquid mist can be used to reduce dust, decompose and dilute the particle concentration in the air, effectively decompose pollution particles and dust in the air, and effectively alleviate haze.

Truck Mounted Mist Cannon

Model:

CL5180TDYD6

 Volume: 12000L
Total Weight:

18000kg

 Curbe Weight:

4500kg
Size of Outter: 8400*2500*3200(mm)

Sprinkler

pump:

 60/90
WheelBase: 4500mm Tire Size: 10.00R20
Transmission: 8-Speed Tire Number: 6+1
Front/Rear Axle: 6T/10T Brake System: Air Brake
Fuel Type: Diesel Emission Standard: Euro 3
Engine Model:

B190 33

 Power:

140kw/190HP
Displacement: 5900ml

Fog gun

 30-120m

 Standard Equipments:
The ZX-80A  truck mounted mist cannon is equipped with a diesel 120kw generator set, a 11kw water pump, a 37KW fan motor, and aluminum alloy fan blades. Double ring stainless steel spray ring with central thunderbolt nozzle, 80+30 stainless steel spray adjustable nozzles, using imported PLC control, imported relays, imported travel switches, well-known domestic brand control switches and wireless remote controllers, with higher standards in the same industry, ensuring product stability in all aspects and extending product service life. Wireless remote control operation (100 meters) and manual operation. The atomization distance is 80 meters

Truck Mounted Mist Cannon
