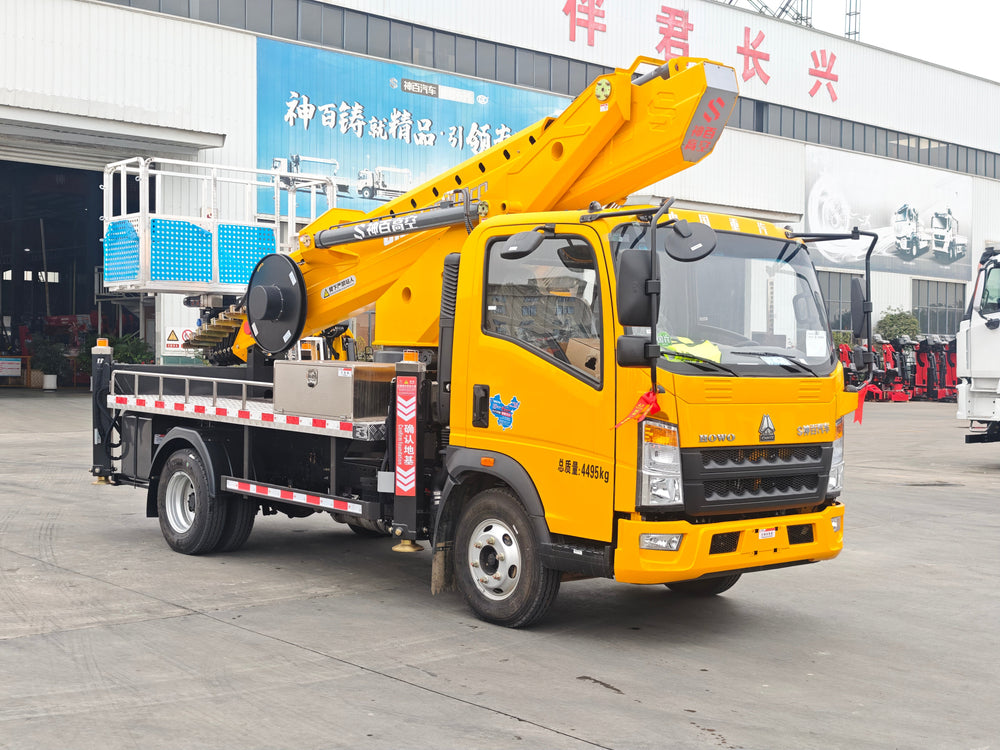

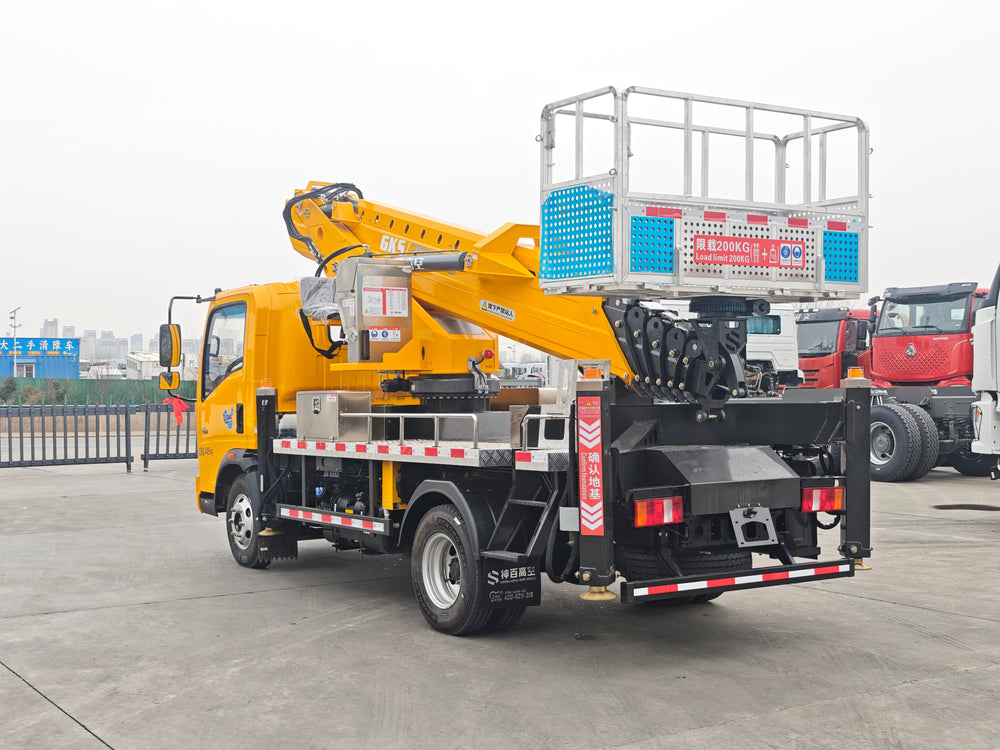

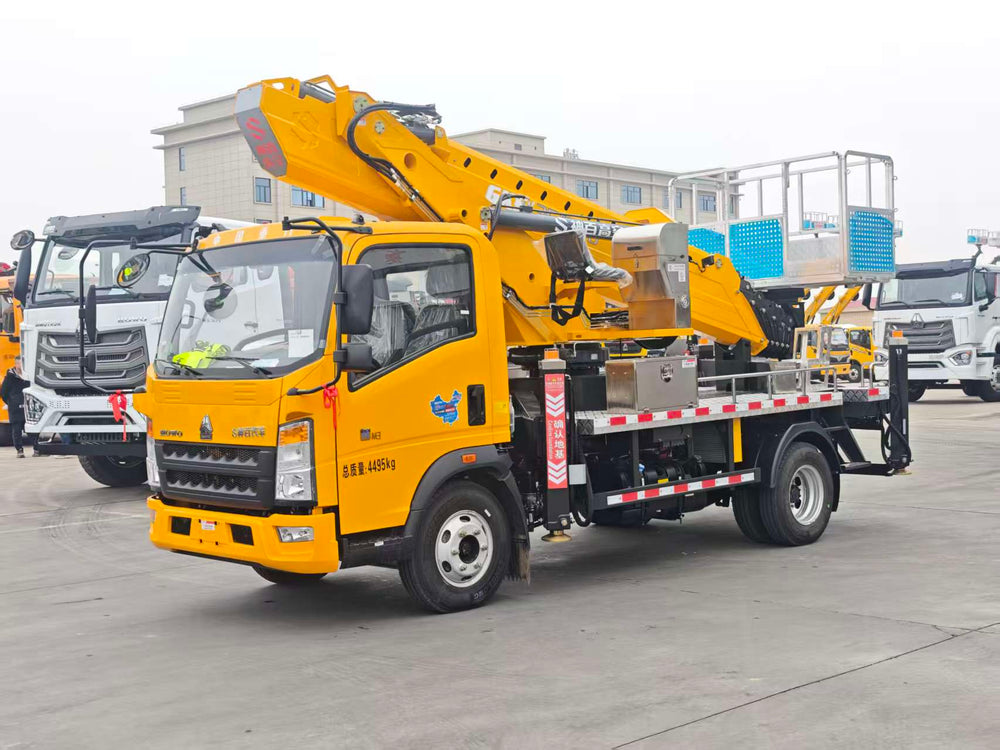

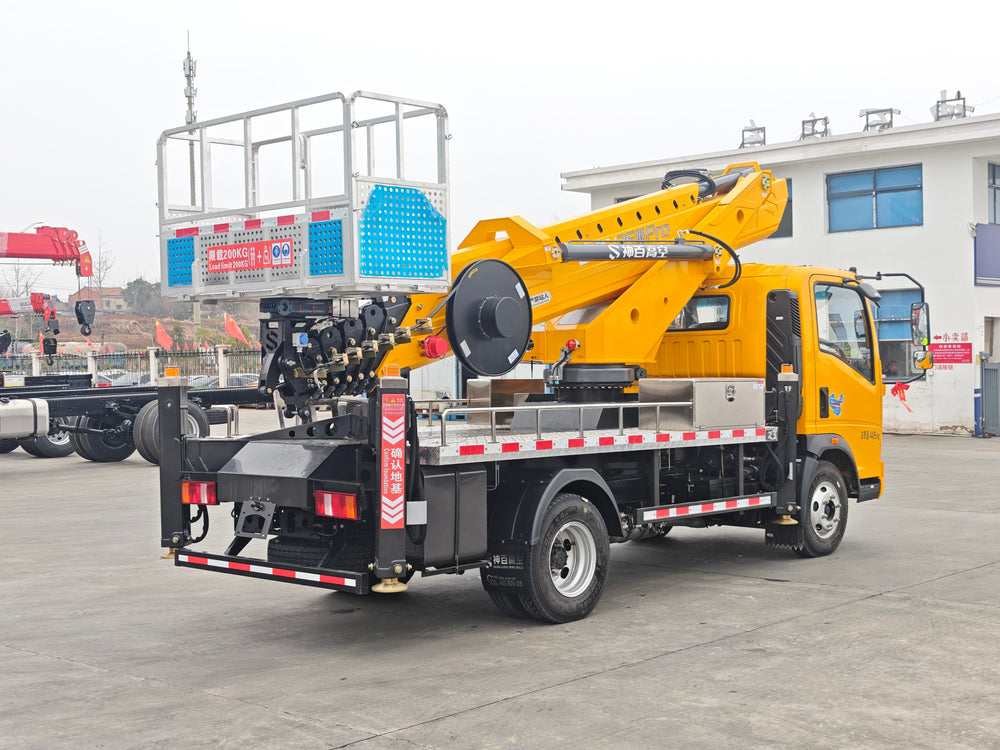

HOWO GKS35Pro Aerial Work Platform Truck
Request a Quote Now
- Product Basic Information & Core Advantages
| Item | Description / Parameter |
|---|---|
| Product Model | GKS35 Pro Aerial Work Vehicle, Howo Rich Edition |
| Approval Model | ABC5047JGKZZ6 |
| Brand & Warranty | Authentic CNHTC Howo luxury high-end brand, 2-year extended warranty |
| After-sales Support | 2150 authorized service stations nationwide |
| Core Innovation | Nationally pioneered 7-section boom design, 33.8m working height for blue-plate certification |
| Boom Material | 960 high-strength steel plate, lightweight & high rigidity |

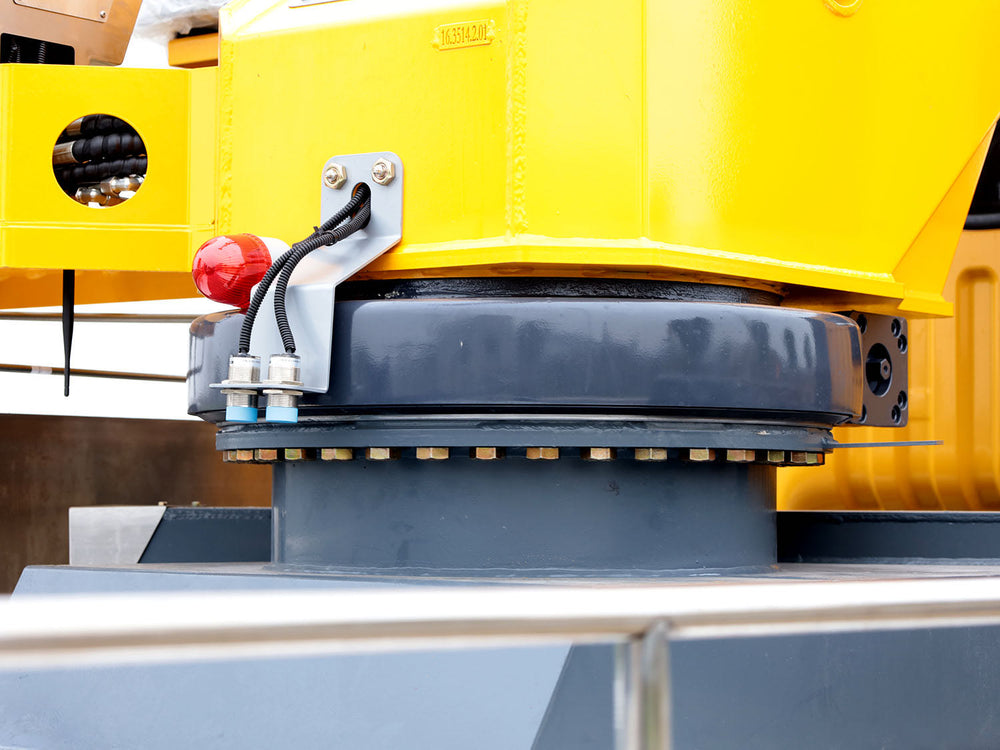

| Key Structure | Dual lifting cylinder design; Box-type subframe + 3-layer trapezoidal reinforced slewing base |

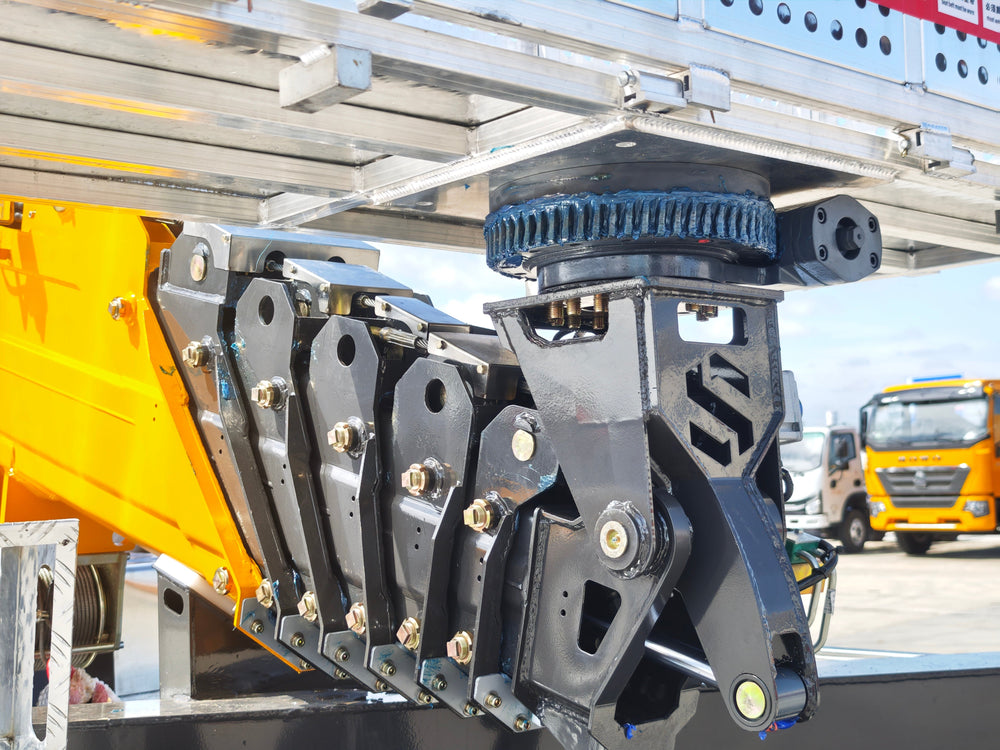

| Working Platform | Full aluminum alloy basket with 9-inch slewing support, built-in cargo platform |
| Passability | Overall vehicle height: 3.15m, excellent urban operation passability |
2. Chassis Configuration
| Item | Parameter |
|---|---|

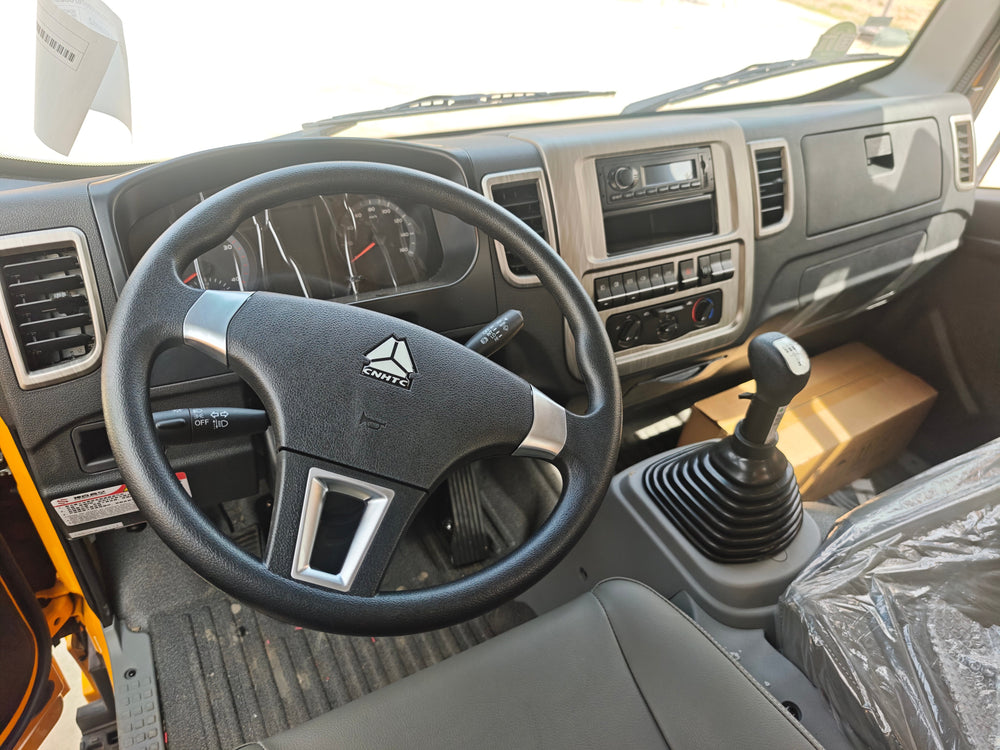

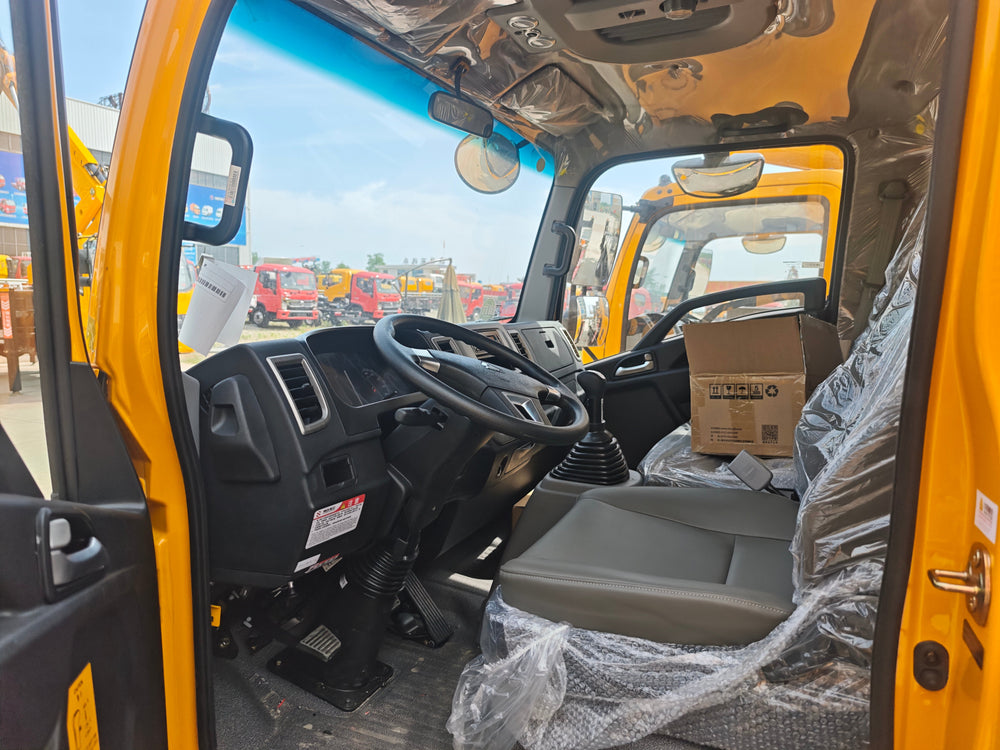

| Cab | Howo Rich Edition Driver Cab |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Engine | Weichai WP25Q160E62, 160 HP Diesel Engine |
| Transmission | Wanliyang 6-speed / Small 8-speed Gearbox (oil change every 120,000km) |
| Wheelbase | 3280 mm |
| Overall Dimension | 5995×2200×3150 mm |
| Tire Spec | 700R16 |
| Brake System | Air Cut-off Brake |
| Standard Accessories | Power Window, Air Conditioner, Central Door Lock |
3. Superstructure (GKS35 Pro) Technical Parameters
| Item | Parameter |
|---|---|
| Max Working Height | 33.8 m |
| Max Working Radius | 16.5 m |

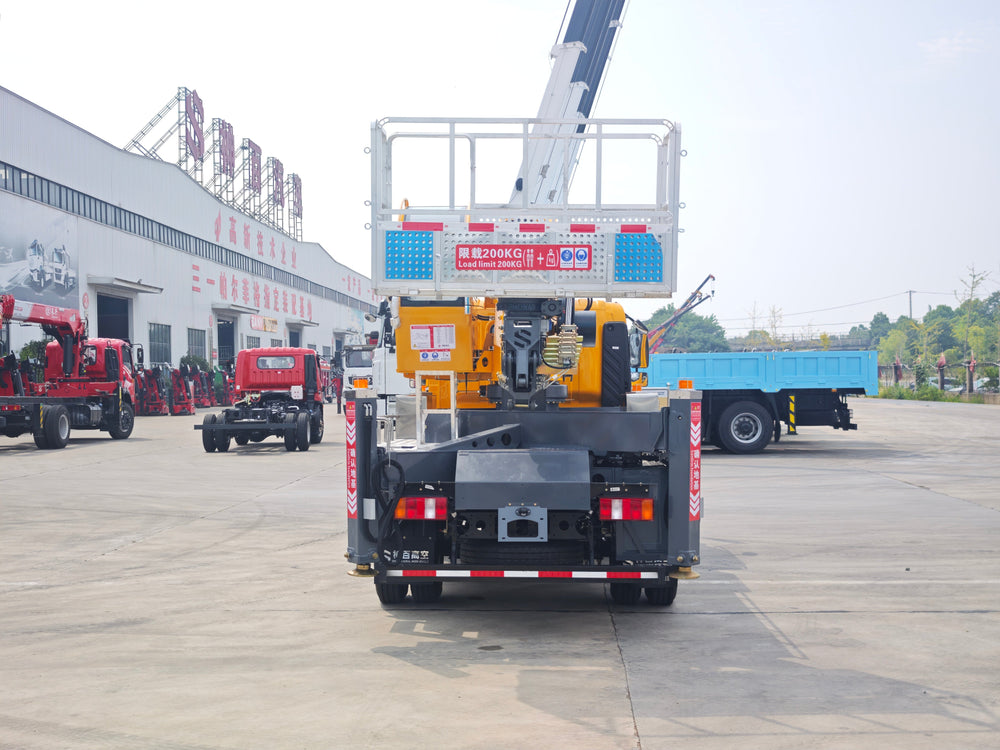

| Rated Platform Load | 200 kg |
| Boom Slewing Range | 360° Full Unlimited Rotation |
| Platform Size | 1800×700×1000 mm with flip plate & cargo platform |
| Platform Rotation | 360° Unlimited Rotation |
| Boom Structure | 7-section boom, 6-section synchronous extension; spare steel cable for emergency crew lowering |
| Total Boom Length | 30.3 m |

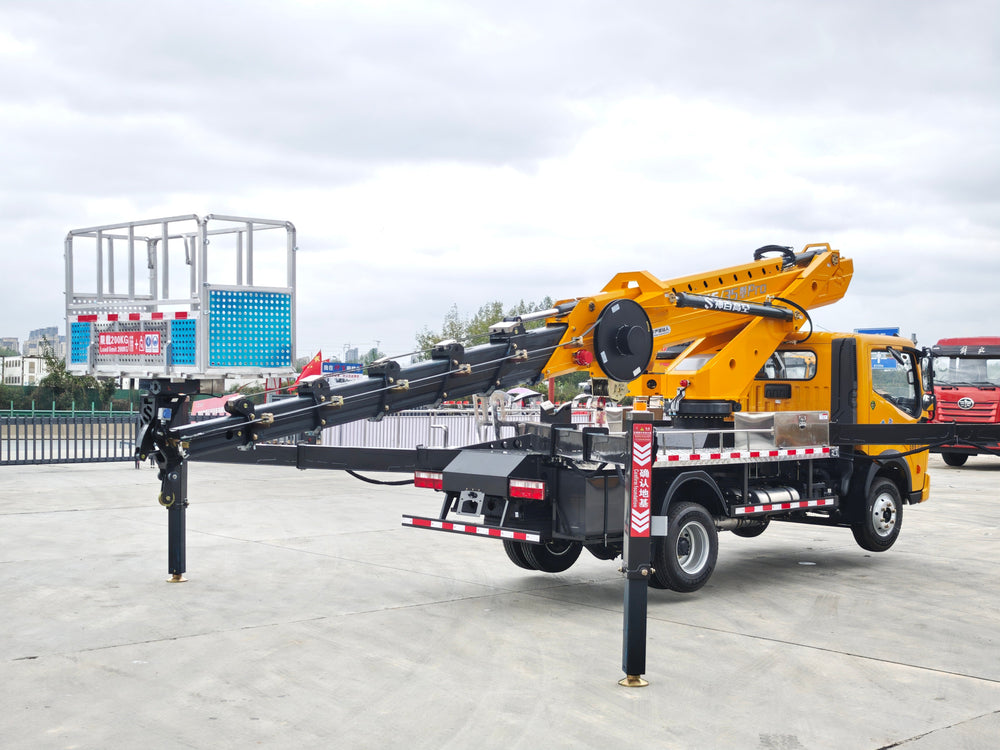

| Outrigger | X-type, 4 independent double-stage legs; Transverse span:5800mm, Longitudinal span:6700mm |

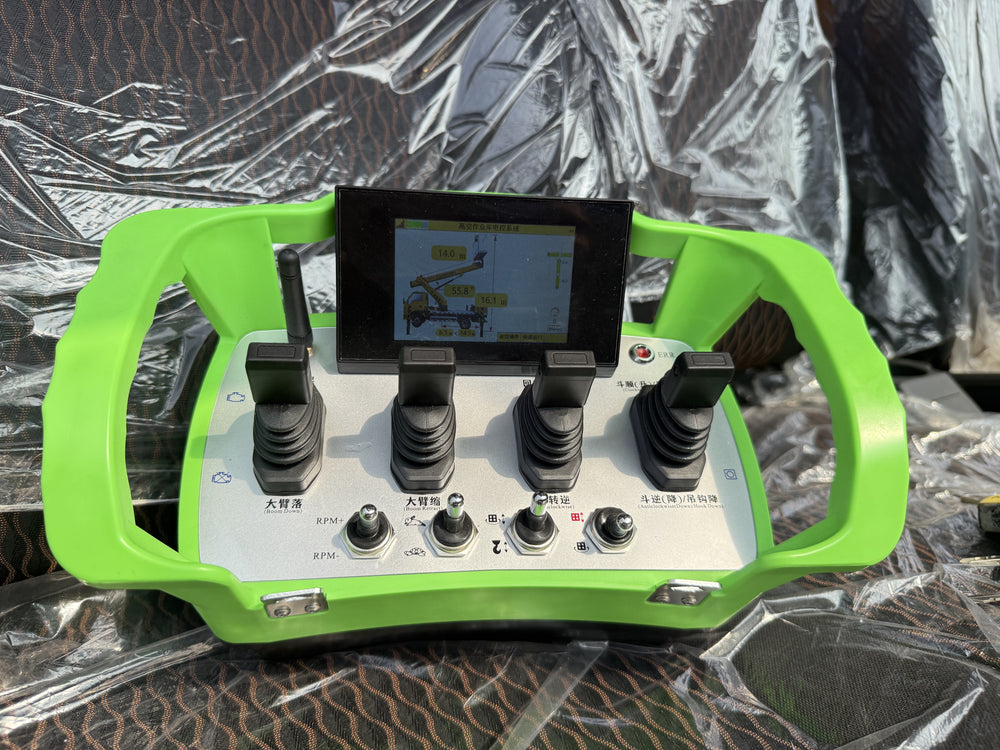

| Control System | Domestic famous ECU, wireless remote control + central control with display screen |

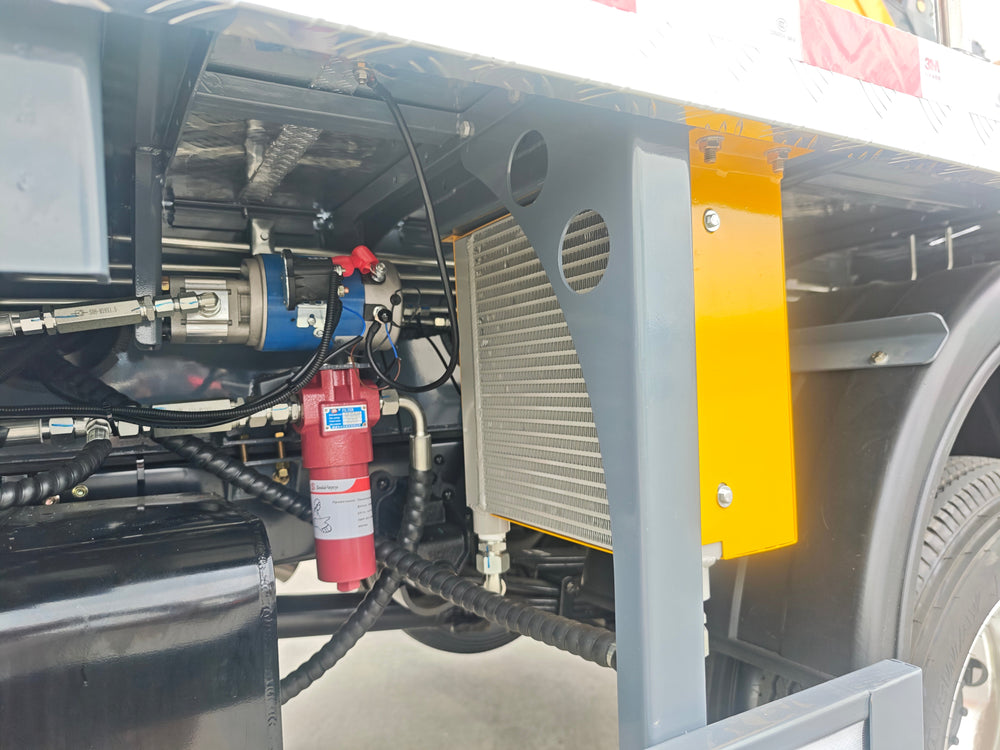

| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation + emergency power unit |
| Walkway | Anti-slip aluminum alloy walkboard |

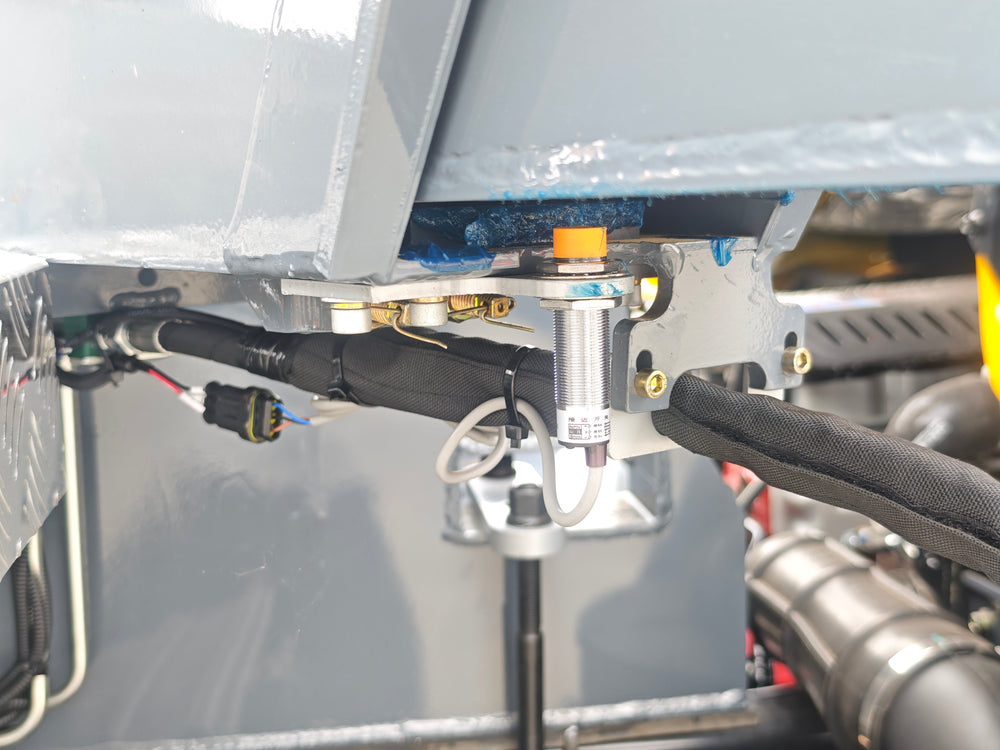

| Safety Devices | Upper-lower cabin interlock, emergency power, bi-directional hydraulic balance valve, outrigger protection, radiator, 220V external power supply |

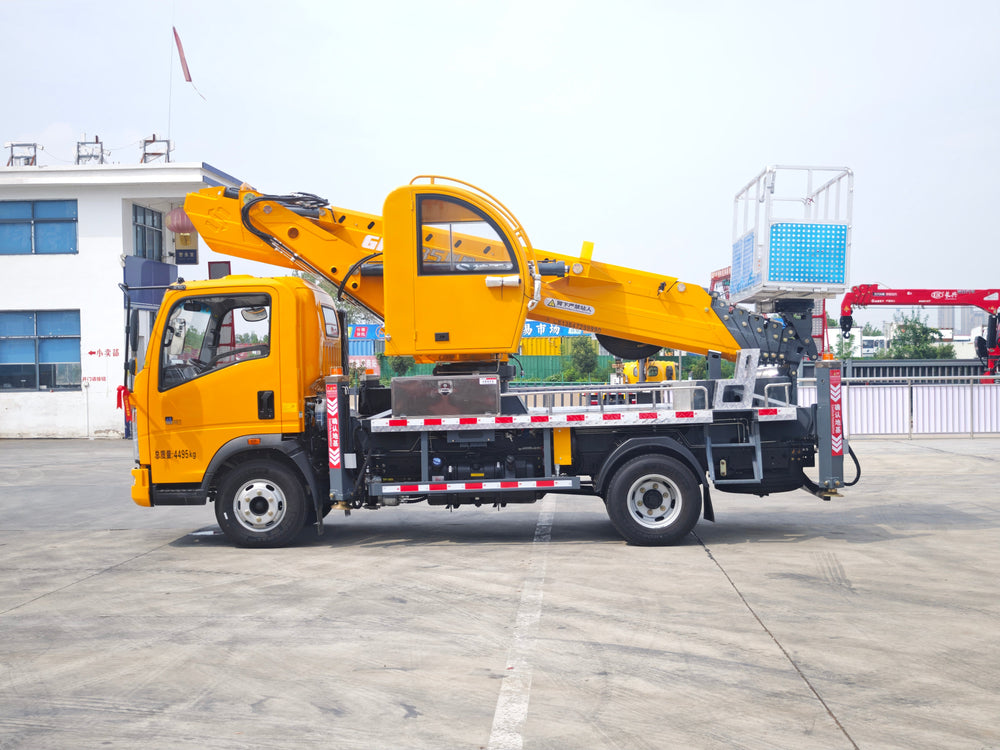

| Optional Parts | Upper operation cabin, 1T winch |
