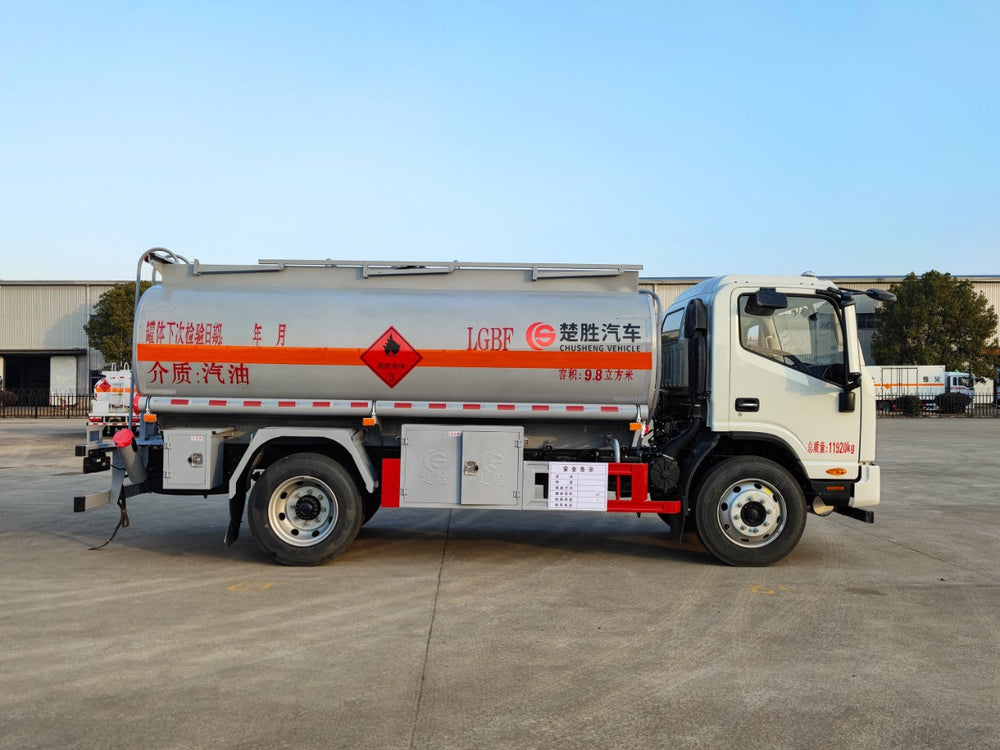

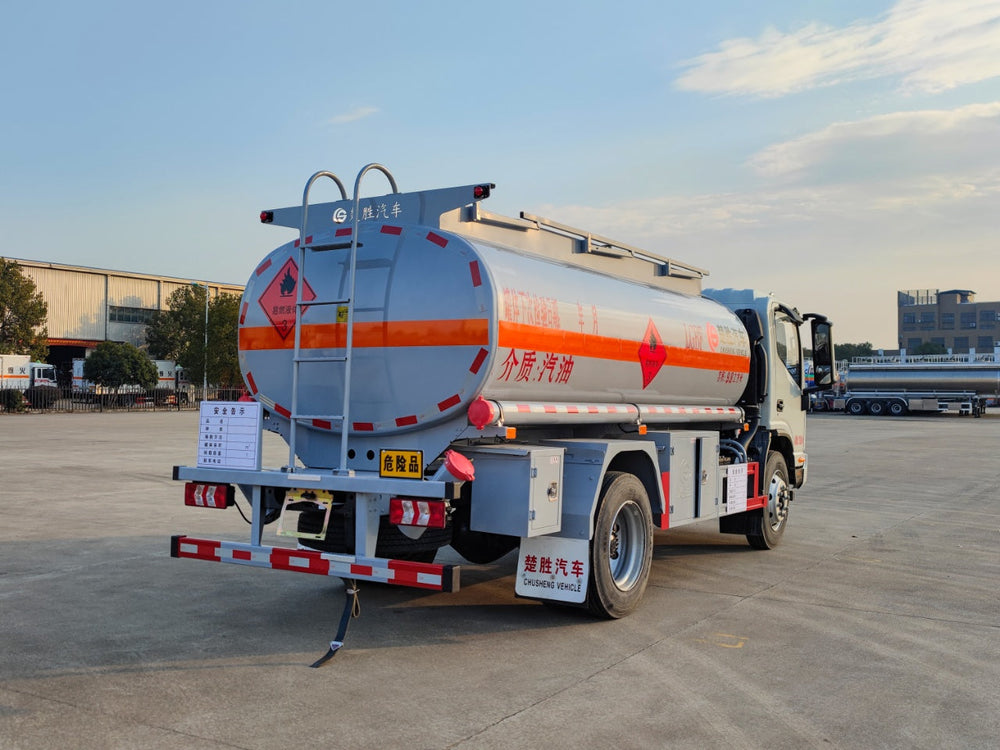

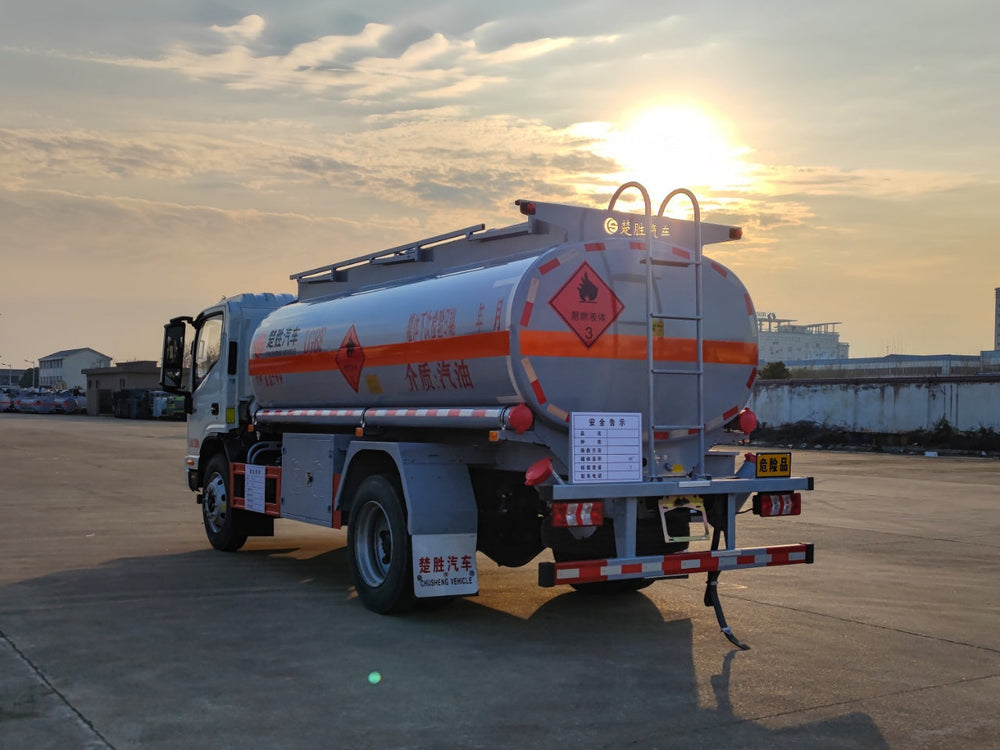

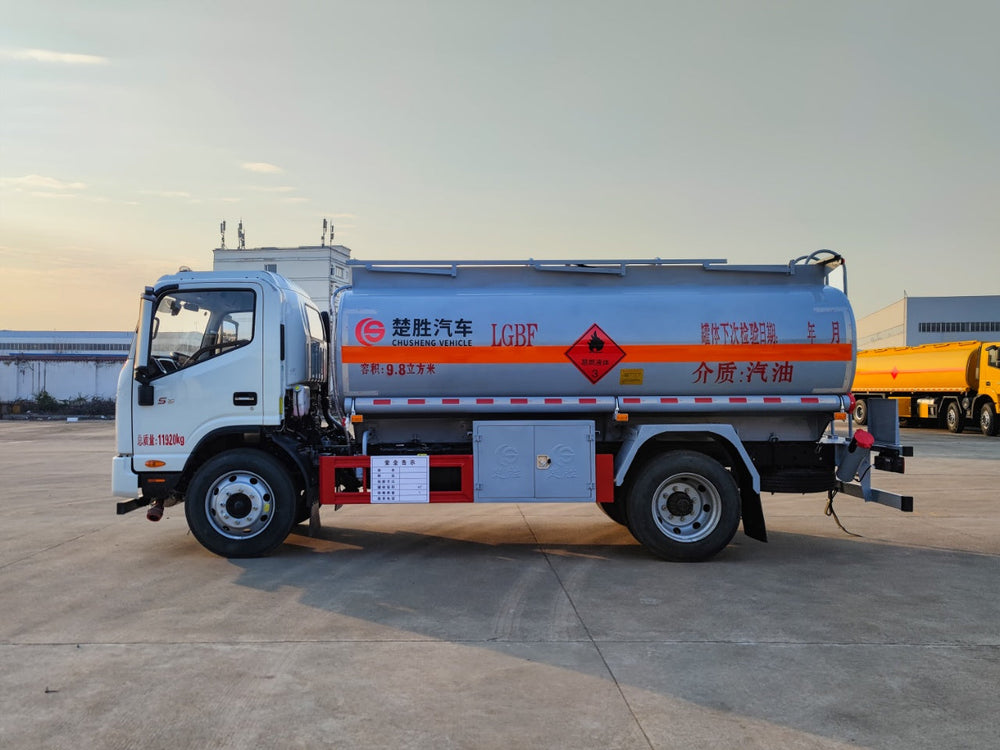

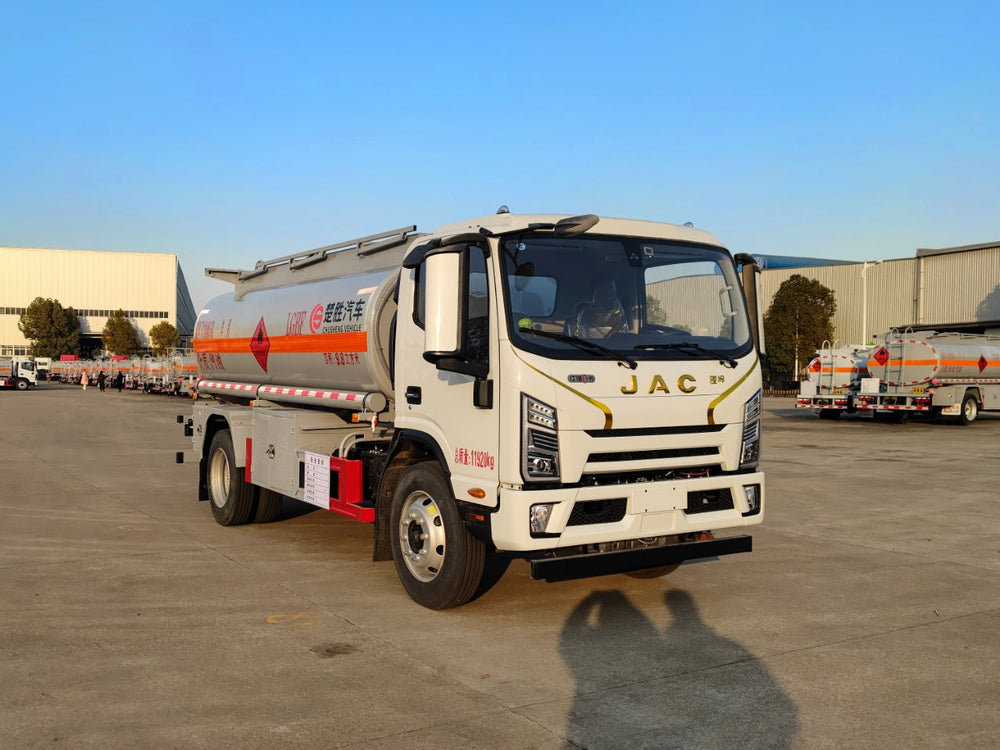

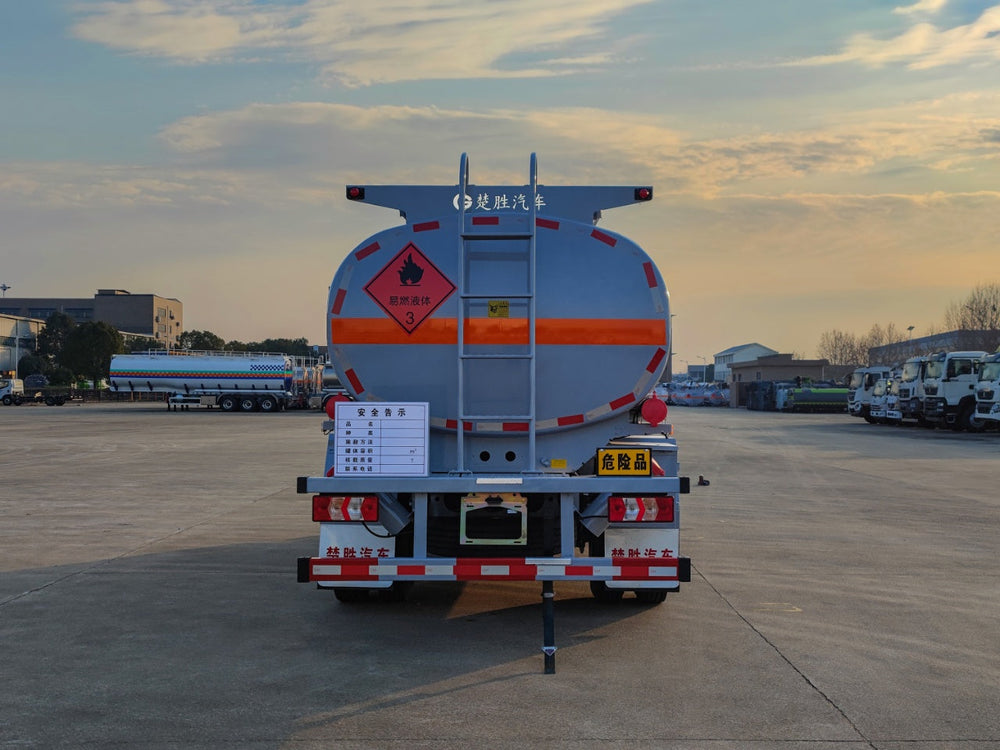

JAC 10m³ Oil Tank Truck

JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
1 / 7
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck
JAC 10m³ Oil Tank Truck

1. Basic Chassis Parameters

Parameter Value
Chassis Model HFC1120P31K5C6ZS
Gross Vehicle Weight 11920 kg
Curb Weight 3080 kg
Overall Dimension (L×W×H) 6925 × 2320 × 2580 mm
Rated Seating Capacity 3 persons
Wheelbase 3845 mm
Leaf Spring Configuration 9 / 9+7

2. Powertrain & Axle Configuration

Parameter Value
Cab Type JAC High-End Junling S9 New Cab, Single-Row 2100mm Wide-Body
Engine Model Yuchai YCY30170-61
Engine Power 170 HP
Transmission Wanliyang 8-Speed Gearbox
Front Axle Rated Load 3.5 Tons
Rear Axle Rated Load 7.2 Tons
Frame Specification 214mm Double-Layer Frame
Tire Specification 9R22.5 14PR Steel Wire Radial Tires
Tire Safety Feature Explosion-Proof Tires
Rear Stabilizer Bar Equipped

3. Brake & Safety Systems

Parameter Value
Brake System Air-Over-Hydraulic Spring Brake, Front Disc Brake
ABS Anti-Lock Braking Equipped
Speed Limiter Equipped
Brake Pad Wear Alarm Equipped
Safety Alarm Switch Equipped
2021 Regulation Dual Warning LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System)
Driving Video Recorder Equipped

4. Steering & Clutch Systems

Parameter Value
Steering System Hydraulic Power Steering, Adjustable Steering Column
Steering Wheel Multifunctional Steering Wheel
Clutch System Air-Push Clutch Booster

5. Electrical & Interior Configuration

Parameter Value
Power Switch Built-In Main Power Switch
OBD Interface Equipped
Rearview Mirror Frame-Type Rearview Mirror with Electric Heating
Daytime Running Lights LED Daytime Running Lights
Headlight Adjustable Headlights
Instrument Panel Multifunctional Instrument Cluster
Engine Preheating Engine Fuel Preheating System

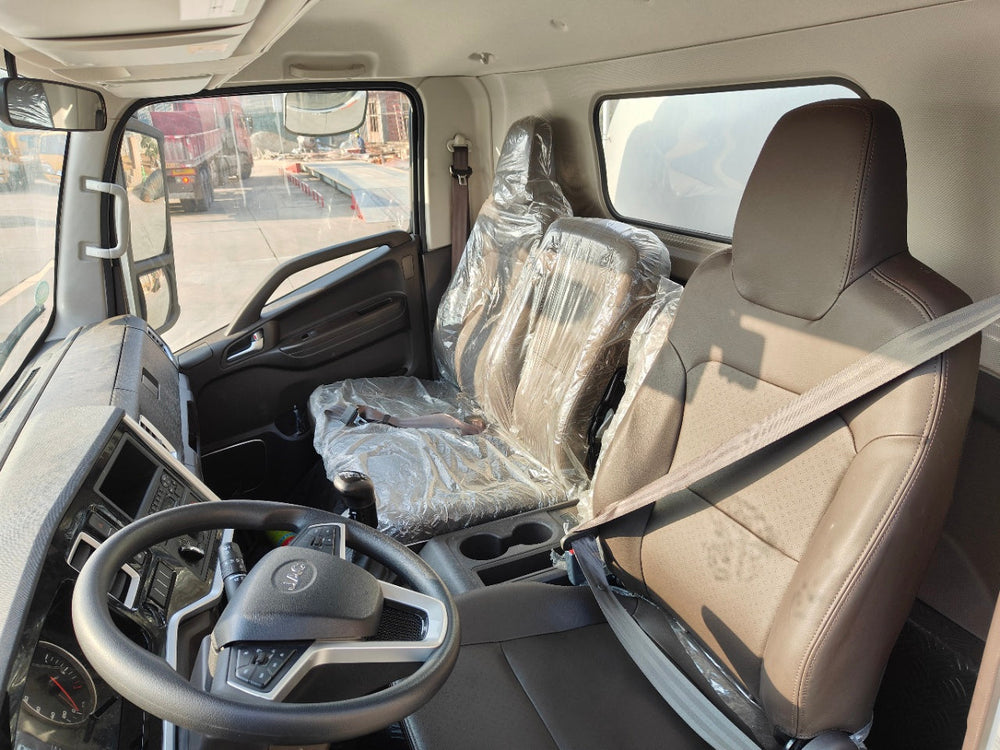

Cab Interior Original Factory Air Conditioner, Radio
PTO Power Take-Off Equipped

6. Tank Body (Upper Structure) Configuration

Parameter Value
Tank Volume Approx. 9.8 m³ (per official announcement dimensions)
Transport Medium Diesel, Gasoline
Tank Body Thickness 5 mm (≥ 4.2 mm)
Tank Head Thickness 5 mm (≥ 4.2 mm)
Pump System Equipped with pump
European Standard Manhole 1 unit
Bottom Valve 1 unit with acoustic-optical automatic alarm system
Bottom Loading System 1 unit (installed on passenger side)
Vapor Recovery System 1 unit
Anti-Overflow System Anti-overflow probe and socket
Pump Inlet/Outlet Installed on passenger side
Toolbox 1 unit (1.05m long, driver side)
Fuel Dispenser Large-Flow Fuel Dispenser
Triangular Top Light Equipped
Static Grounding Reel Equipped
Folding Guardrail Equipped
Fire Cap 1 unit
Oil Delivery Pipes 2 pipes equal to tank length
Fire Extinguishers 2 units
Other Accessories Standard remaining configuration
