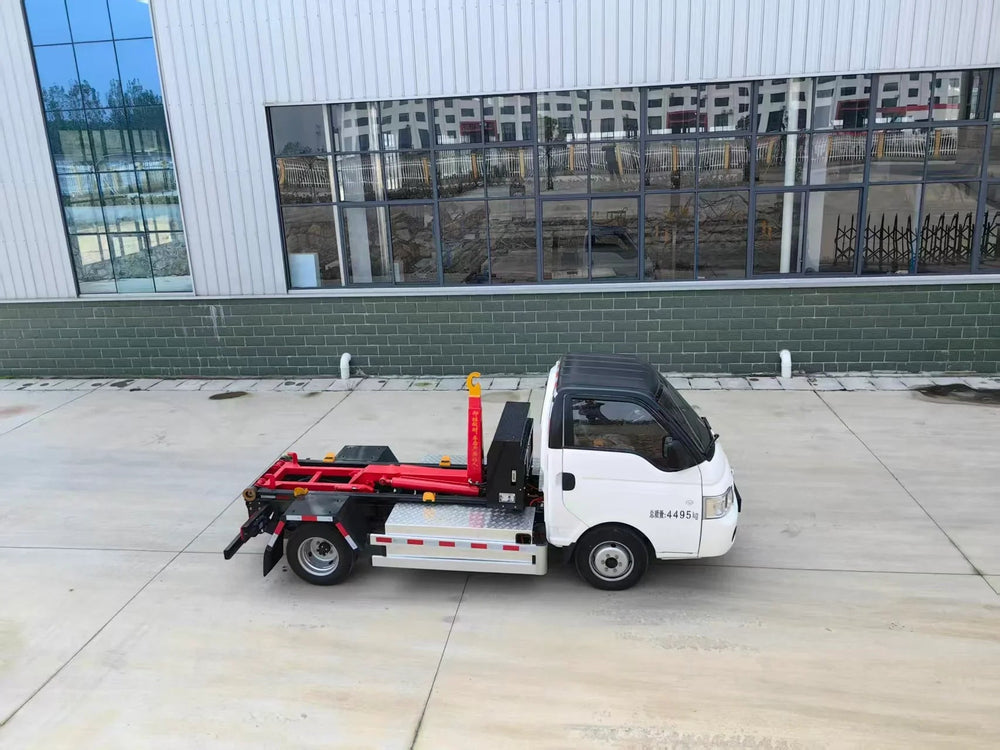

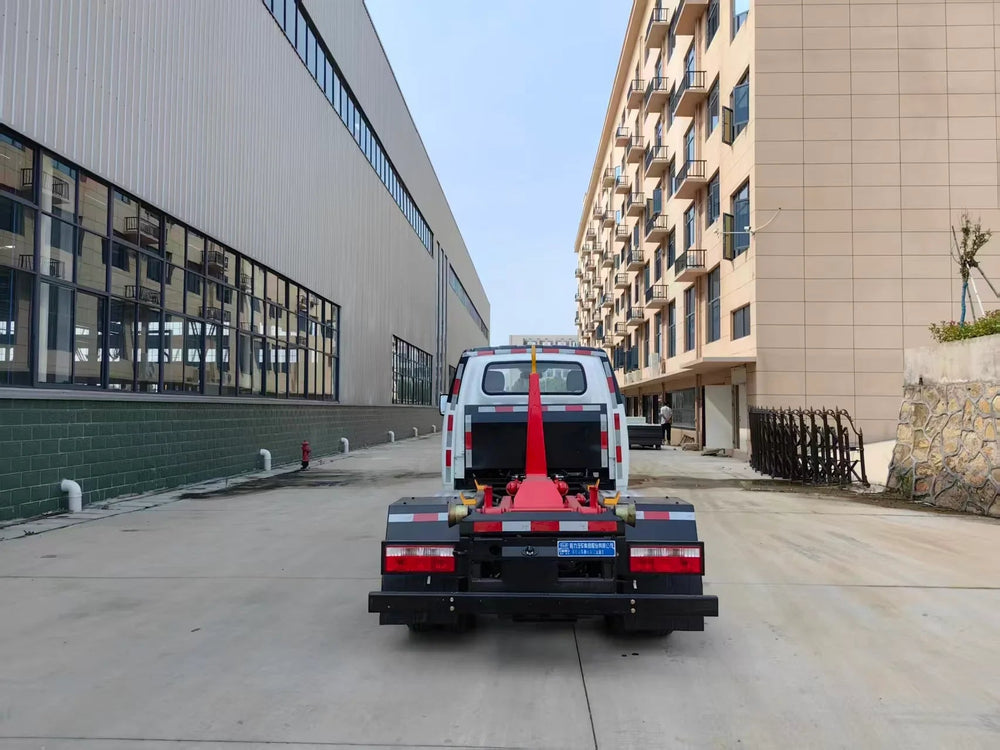

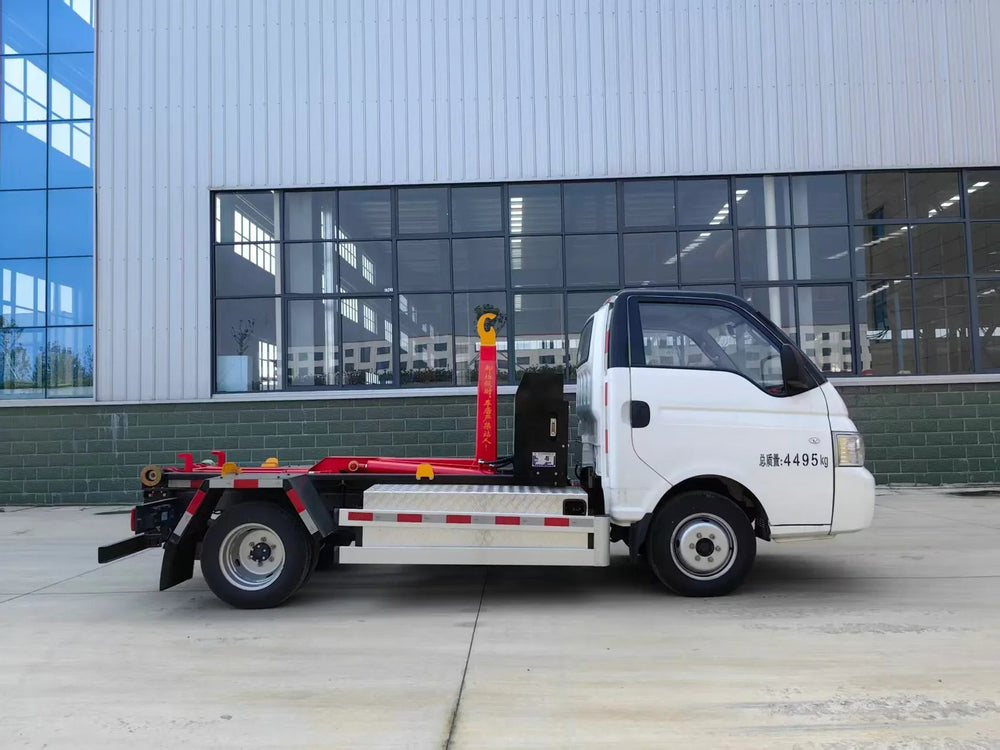

4.5T EV Hooklift GarbageTruck

4.5T EV Hooklift GarbageTruck
4.5T EV Hooklift GarbageTruck
4.5T EV Hooklift GarbageTruck
1 / 3
4.5T EV Hooklift GarbageTruck
4.5T EV Hooklift GarbageTruck
4.5T EV Hooklift GarbageTruck

Zero-emission hook lift garbage truck, one chassis matches multiple bins for flexible waste collection & transportation.

Parameter Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model CL5045ZXXBEV Battery Electric Hook Lift Garbage Truck
Gross Vehicle Weight (GVW) 4495 kg
Curb Weight 2510 kg
Payload Capacity 1855 kg
Rated Passenger Capacity 2 persons
Cab Model Kaima
Overall Dimensions (L×W×H) 4920×1840×2035 mm
Wheelbase 2800 mm
Front / Rear Overhang 1210 / 910 mm
Approach / Departure Angle 21° / 20°
Front / Rear Track Width 1405 / 1240 mm
Minimum Ground Clearance 185 mm
Minimum Turning Diameter 13 m
Tire Specification 185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer Shenbai Automobile Group Co., Ltd.
Chassis Model CL1041JBEV
Drive Configuration 4×2
Battery Type Lithium Iron Phosphate (LFP)
Battery Manufacturer Gotion High-tech
Battery Capacity 57.6 kWh
Nominal Voltage / Capacity 384V / 150Ah
Battery System Energy Density 140.3 Wh/kg
Drive Motor Manufacturer Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model TZ210XSZ03
Rated / Peak Power 55 / 110 kW
Rated / Peak Torque 150 / 318 Nm
Rated / Peak Speed 3500 / 12000 rpm
Maximum Speed 90 km/h
Driving Range 265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded) 25%
Fast Charging Time (30%-80% SOC) 0.5h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Maximum Hook Lifting Capacity 3000 kg
Hook Center Height 1000 mm
Distance from Hook Ring Center to Locking Crossbeam 1950 mm
Horizontal Distance from Hook Ring Center to Rear Roller Center 2115 mm
Box Track Clearance Height 64 mm
Track Outer Width 900 mm
Box Hooking Time ≤25 s
Box Unloading Time ≤25 s
Compatible Garbage Box Length 2000~3400 mm
