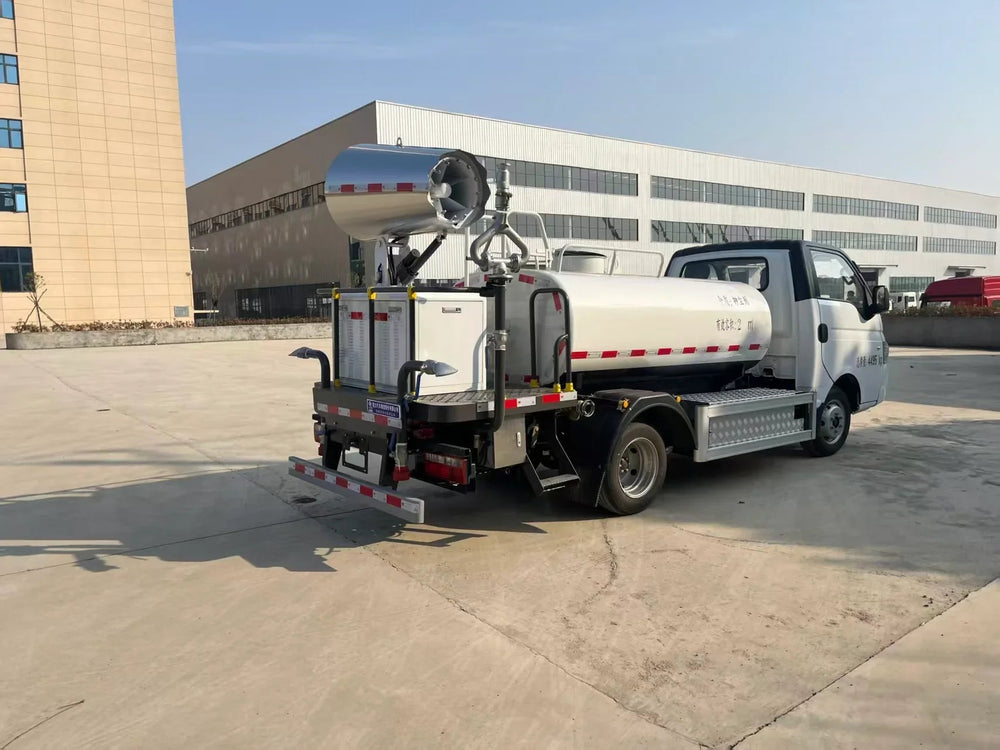

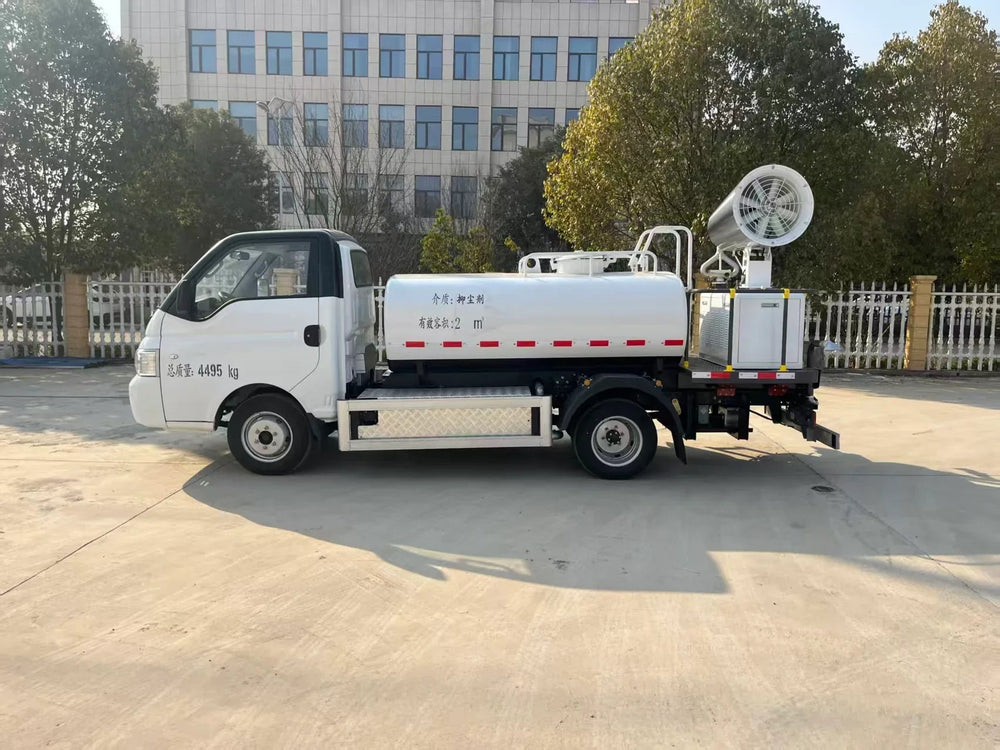

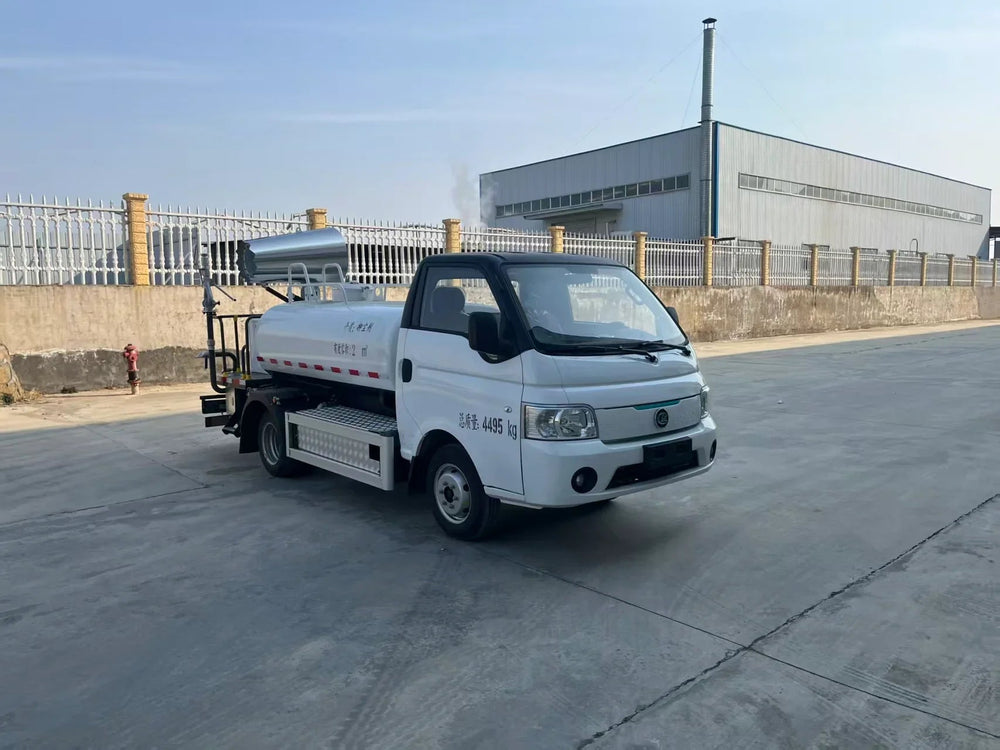

4.5T EV Multi-purpose Dust Control Truck

4.5T EV Multi-purpose Dust Control Truck
4.5T EV Multi-purpose Dust Control Truck
4.5T EV Multi-purpose Dust Control Truck
1 / 3
4.5T EV Multi-purpose Dust Control Truck
4.5T EV Multi-purpose Dust Control Truck
4.5T EV Multi-purpose Dust Control Truck

Eco-friendly electric sanitation truck with water sprinkling, high-pressure washing & fog cannon for dust suppression.

Parameter

 Core Specification
1. Whole Vehicle Basic Parameters
Vehicle Model CL5040TDYBEV Battery Electric Multi-Function Dust Suppression Truck
Gross Vehicle Weight (GVW) 4495 kg
Curb Weight 2850 kg
Payload Capacity 1515 kg
Rated Passenger Capacity 2 persons
Cab Model Kaima
Overall Dimensions (L×W×H) 5800×1910×2550 mm
Wheelbase 2800 mm
Front / Rear Overhang 1210 / 1790 mm
Front / Rear Track Width 1405 / 1240 mm
Approach / Departure Angle 21° / 10°
Minimum Ground Clearance 185 mm
Minimum Turning Diameter 13 m
Tire Specification 185R15LT 8PR
2. Chassis & Electric Powertrain Parameters
Chassis Manufacturer Shenbai Automobile Group Co., Ltd.
Chassis Model CL1041JBEV
Drive Configuration 4×2
Battery Type Lithium Iron Phosphate (LFP)
Battery Manufacturer Gotion High-tech
Battery Capacity 57.6 kWh
Nominal Voltage / Capacity 384V / 150Ah
Battery System Energy Density 140.3 Wh/kg
Drive Motor Manufacturer Chengdu Yiwei New Energy Automobile Co., Ltd.
Drive Motor Model TZ210XSZ03
Rated / Peak Power 55 / 110 kW
Rated / Peak Torque 150 / 318 Nm
Rated / Peak Speed 3500 / 12000 rpm
Maximum Speed 90 km/h
Driving Range 265 km (40km/h constant speed)
Maximum Gradeability (Fully Loaded) 25%
Fast Charging Time (20%-100% SOC) 1.0h (single-gun fast charge)
3. Specialized Upper Equipment Parameters
Water Tank Dimensions (L×Major Axis×Minor Axis) 2400×1400×800 mm
Certified Effective Water Tank Volume 2 m³
Total Water Tank Volume 2.1 m³
Upper Equipment Motor Rated Power 10 kW
Upper Equipment Motor Rated Speed 1500 r/min
Low-Pressure Water Pump Brand Hangzhou Weilong
Water Pump Model 50QZR-15/45N
Fog Sprayer Nozzle Quantity 16 pcs
Fog Sprayer Horizontal Range 30-40 m
Front Flushing Width ≥14 m
Rear Sprinkling Width ≥8 m
Water Cannon Range ≥20 m
Sprinkling Speed To be supplemented (no value provided in original parameters)
