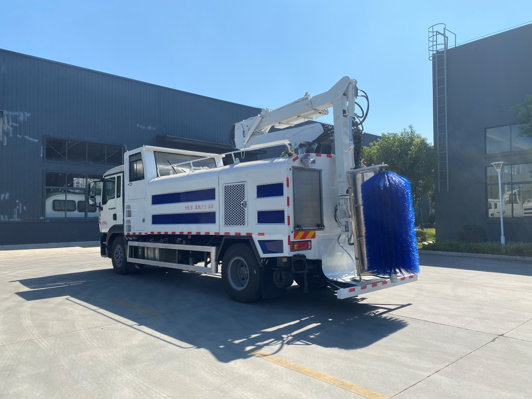

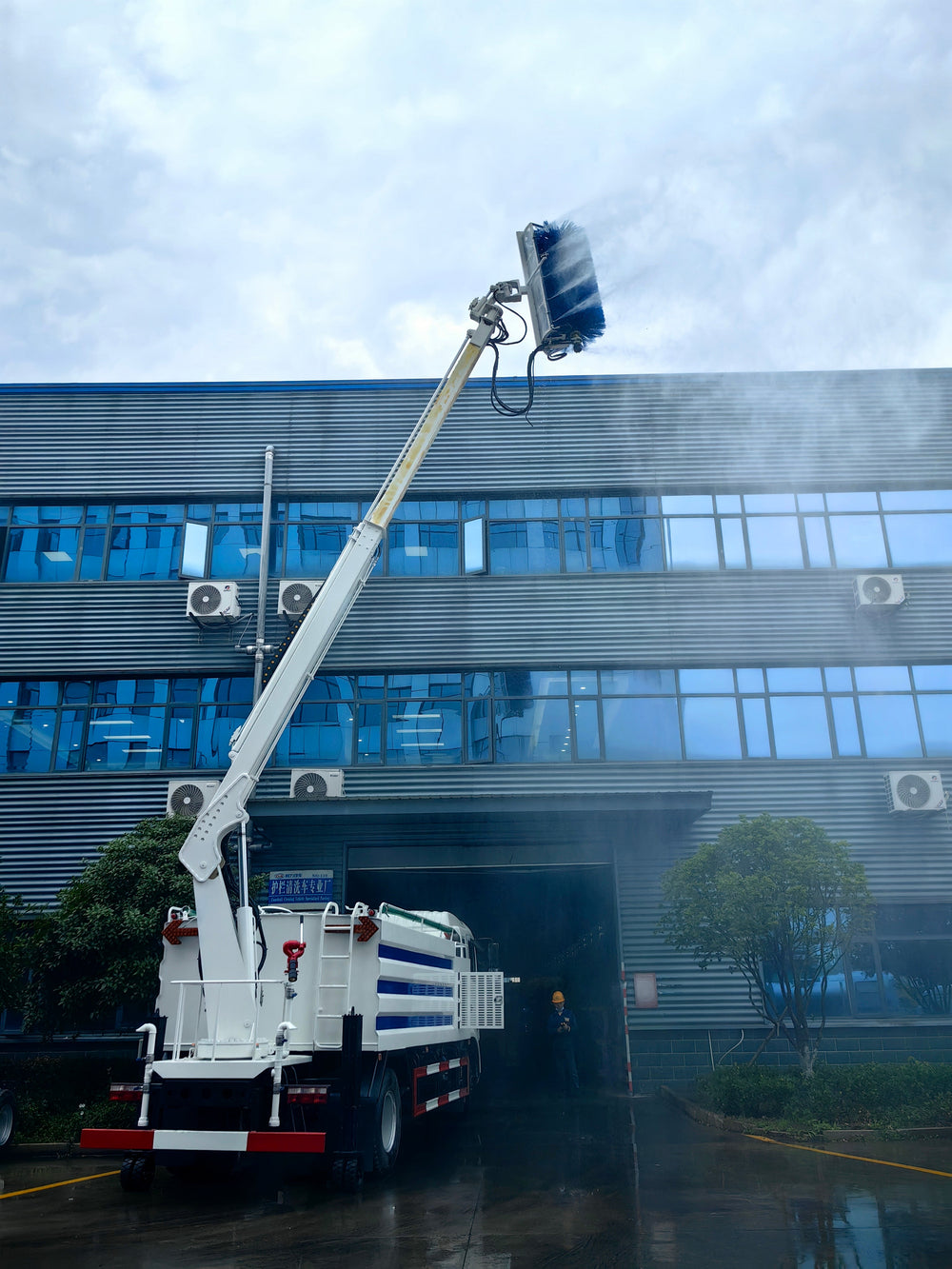

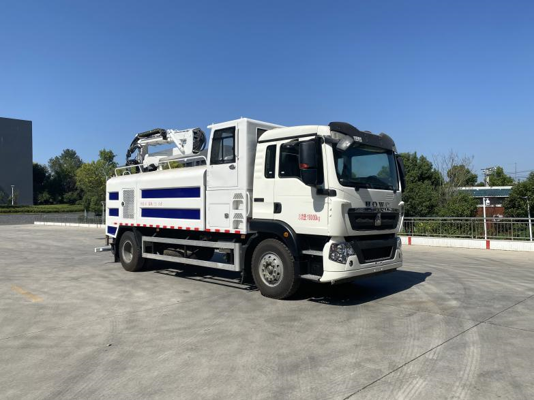

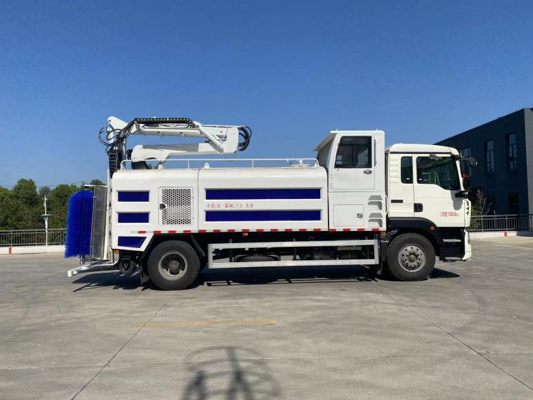

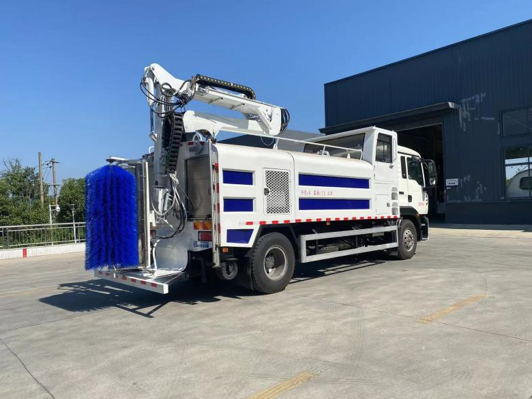

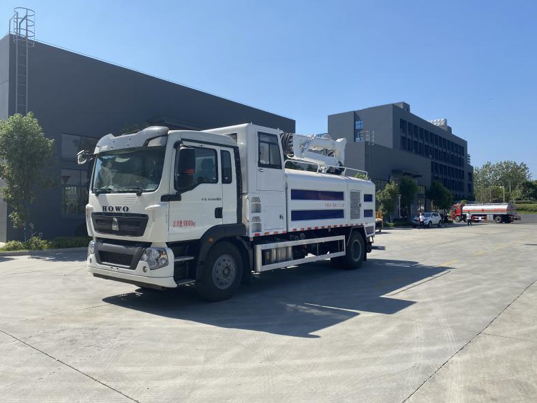

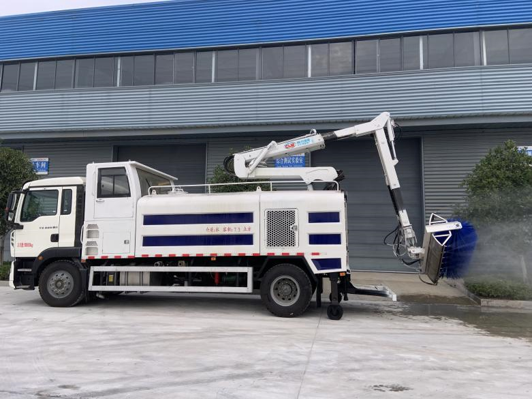

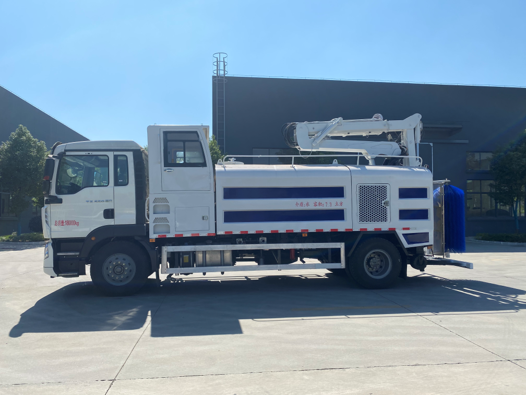

HOWO 10m³ Wall Cleaning Truck

HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
1 / 9
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck
HOWO 10m³ Wall Cleaning Truck

1. Complete Vehicle Basic Parameters

Parameter Value
Vehicle Type Wall Cleaning Truck
Complete Vehicle Model CL5187TXQ6HL
Gross Vehicle Weight 18000 kg
Rated Load Capacity 7070 kg / 7005 kg
Curb Weight 10800 kg
Number of Axles 2
Drive Mode 4×2 (Single Rear Axle)
Axle Load Distribution 6500 kg / 11500 kg
Cab Seating Capacity 2 persons / 3 persons
Fuel Type Diesel
Maximum Speed 89 km/h
Maximum Climbing Gradient (Working) 20 %
Chassis Model ZZ1187K501GF1

2. Dimension & Wheel Parameters

Parameter Value
Overall Dimension (L×W×H) 9000 × 2520 × 3980 mm
Wheelbase 5000 mm
Front Overhang / Rear Overhang 1430 mm / 2570 mm
Approach Angle / Departure Angle 19° / 9°
Front Track Width 1950 / 2035 / 1910 / 1930 mm
Rear Track Width 1848 / 1860 mm
Tire Specification 10.00R20 18PR
Number of Tires 6

3. Powertrain System

Parameter Value
Engine Model WP4.6NQ220E61
Engine Power Weichai 220 HP (4-cylinder)
Transmission HW95508STC Howo Synchronizer 8-speed Gearbox

4. Water Tank System

Parameter Value
Tank Volume 10 m³
Tank Material Q235 Carbon Steel
Tank Wall Thickness 4 mm
Splash Guard Thickness 3 mm

5. Wall Cleaning Performance Parameters

Parameter Value
Roller Brush Width 1500 mm
Maximum Top Cleaning Height 10 m
Inner Side Wall Cleaning Height Range 0.15 – 8 m
Outer Side Wall Cleaning Height Range 1.5 – 6 m
Working Cleaning Speed 2 – 5 km/h
Cleaning Capacity 7000 m²/h
Control Mode In-cab operation

6. Core Working Systems

System Description
Cleaning Device Consists of brush bracket assembly, brush head unit, swing motor and high-pressure water pipelines. Water jets spray onto wall and roller to wet and pre-wash; hydraulic motor drives roller via chain to scrub and remove dirt; detergent mixes with water via dedicated nozzles to enhance cleaning performance
Water Circuit System Dual-circuit design: Clean water circuit (pump, filter, 3-way ball valve, rotary joint, nozzles & pipelines) for wall flushing and roller cleaning; Detergent water circuit (pump, filter, nozzles & pipelines) to mix with clean water and boost roller cleaning power
Boom System Slewing platform + multi-section boom assembly mounted on subframe; roller head installed at boom tip; boom performs rotation, lifting, telescoping and folding motions to position roller against wall at any angle
Hydraulic System Auxiliary engine drives hydraulic pump; one multi-way valve supplies oil to front roller folding/tilting cylinders and boom lift cylinders, as well as roller rotation & translation motors; two additional multi-way valves control boom lifting, telescoping, slewing and support wheel lifting with speed regulation
Electrical System Includes controller, industrial remote control, operation panel, lighting system, sensors and wiring harness
Operation Control Controller + industrial remote control + HMI management via CAN bus; integrates automatic control & monitoring, equipment management, fault alarm and self-diagnosis

7. Chassis Standard Configuration

Parameter Value
Cab Type Howo TX Cab
Cab Interior High-end luxurious interior, comfortable ride
Standard Cab Accessories Automatic air conditioner, power take-off, central door locking, electric windows, remote key, double-layer frame, Zhinengtong telematics, electro-hydraulic integrated cab lift
Fuel Tank 200 L Fuel Tank
Front Axle 1094 Self-Adjusting Arm Front Axle (4.3 Tons Rated Load)
Rear Axle MCJ09BG Single-Stage Reduction Self-Adjusting Arm Drive Axle (9 Tons Rated Load)
