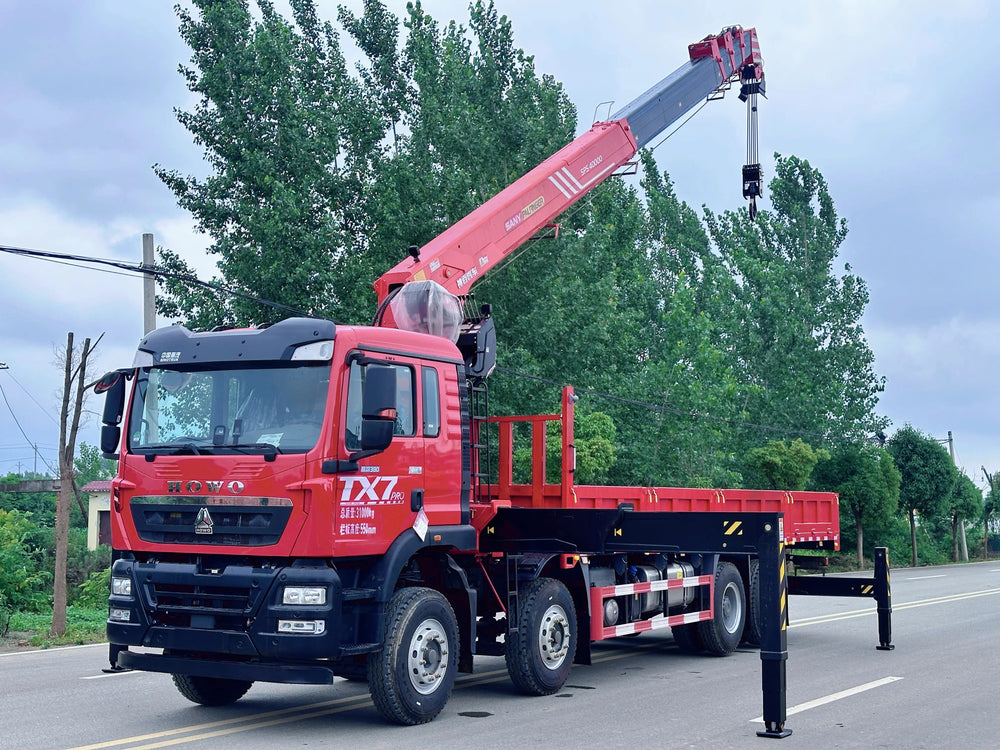

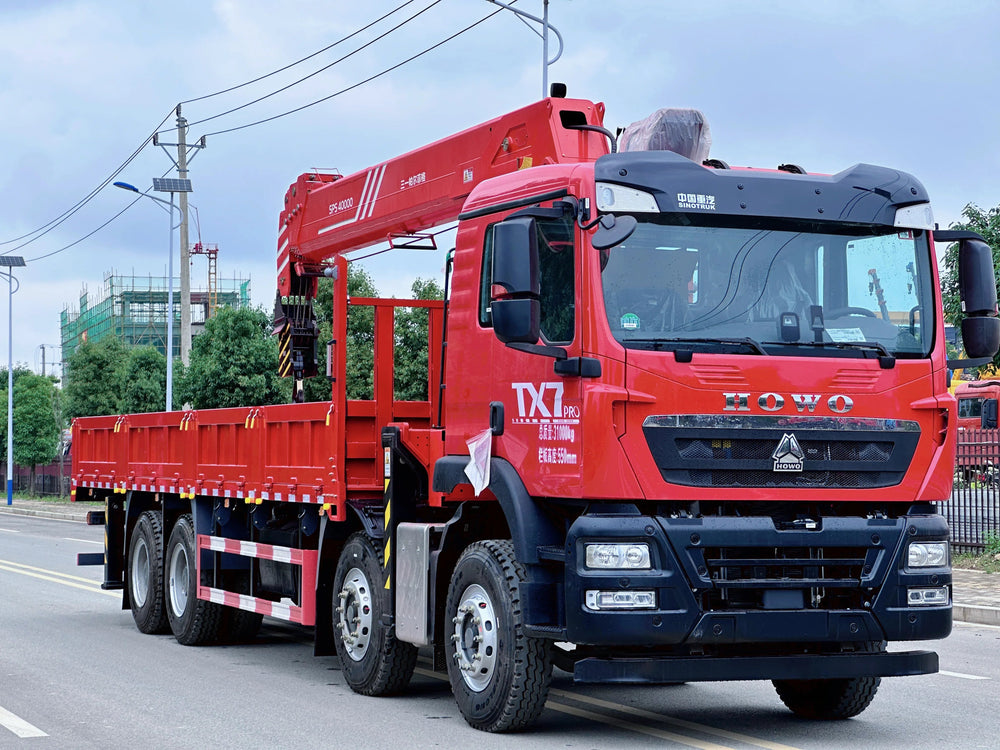

HOWO 8×4 16TPalfinger Telescopic Boom Crane

HOWO 8×4 16TPalfinger Telescopic Boom Crane
HOWO 8×4 16TPalfinger Telescopic Boom Crane
1 / 2
HOWO 8×4 16TPalfinger Telescopic Boom Crane
HOWO 8×4 16TPalfinger Telescopic Boom Crane
Parameter Specification
Engine Weichai 8T, 380HP, 8.2L Displacement
Gearbox + Power Take-off (PTO) HW25712XSTL Gearbox + HW70 Flange-type PTO
Front Axle VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle MAT16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake), 16-ton Wheel Reduction Axle
Axle Ratio 4.803
Frame Triple-layer Through Frame (8+5+8/318)
Leaf Spring Quantity 11/11/12
Tires 11.00R20 Tires (Mixed Pattern/18PR)
Cab Model TX-K Extended Cab (Woying Edition)
Steering Wheel Multi-function Steering Wheel
Rearview Mirrors Electrically Adjustable and Heated Rearview Mirrors
Seats Driver Airbag Seat + Passenger Simple Seat
Engine Model WP 8T 380E62
Front Axle Model VGD75 Self-adjusting Arm Front Axle (Drum Brake)
Rear Axle Model MCX16ZG Self-adjusting Arm Dual Rear Axles (Drum Brake)
Leaf Springs Front and Rear Standard Multi-leaf Springs (11/11/12)
Driving Assistance System AEBS + ABS (4S/4M) + ESC
Center Console Screen 10.1-inch Full HD LCD Center Console Screen (MP5)
Bumper High-position Full-metal Bumper
Cab Lifting Manual Lifting
Fuel Tank 400L Fuel Tank
Cab Additional Seat Cab Middle Seat
Optional Equipment Under-vehicle Start-stop Switch
Power System Matching Weichai 8T 380HP engine, HOWO 12-speed gearbox, integrated development of engine, gearbox and axle for superior vehicle adaptability
Cab Safety Design Authentic German MAN cab body, three-section full-metal high-position bumper, four-point cab suspension with world-leading collapse technology, effectively protecting the safety of drivers and passengers in emergency situations
Driving Comfort Driver's popular aviation airbag seat with multi-directional adjustment and lumbar support, user-friendly seat belt design for a comfortable driving experience
Frame & Suspension Performance Triple-layer through frame (8+5+8/318), reinforced by engineering vehicle leaf springs and four U-bolts, with industry-leading torsion resistance under complex road conditions; equipped with V-type thrust rod for optimal body stability under heavy load
Rear Axle Performance Sinotruk independently developed dual 16-ton wheel reduction rear axles with three differential locks, providing speed reduction and torque increase to easily handle various complex road conditions
Crane SANY 16-ton 5-section Boom Crane, Boom Length 19m, Upper Operation, Single Extension of 2nd Boom, Double-section Front Outriggers (Double Oil Cylinders)
Crane Hydraulic System Original Factory Radiator Piston Pump, Planetary Slewing (Piston Motor), Hoisting (Piston Motor)
Cargo Box Through Auxiliary Beam, 8.4m Engineering Cargo Box with 3mm Side Plate and 5mm Bottom Plate
