JAC Kangling 3.8m Light-duty Box Van

JAC Junling H Box Truck - Rear Side View

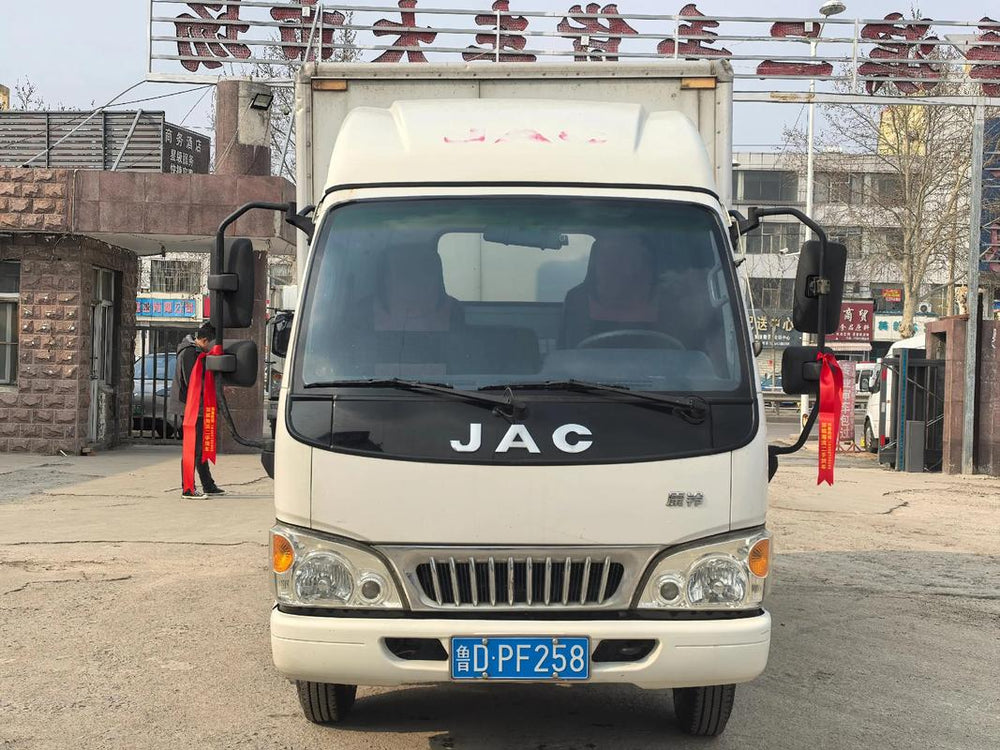

JAC Junling H Box Truck - Front View

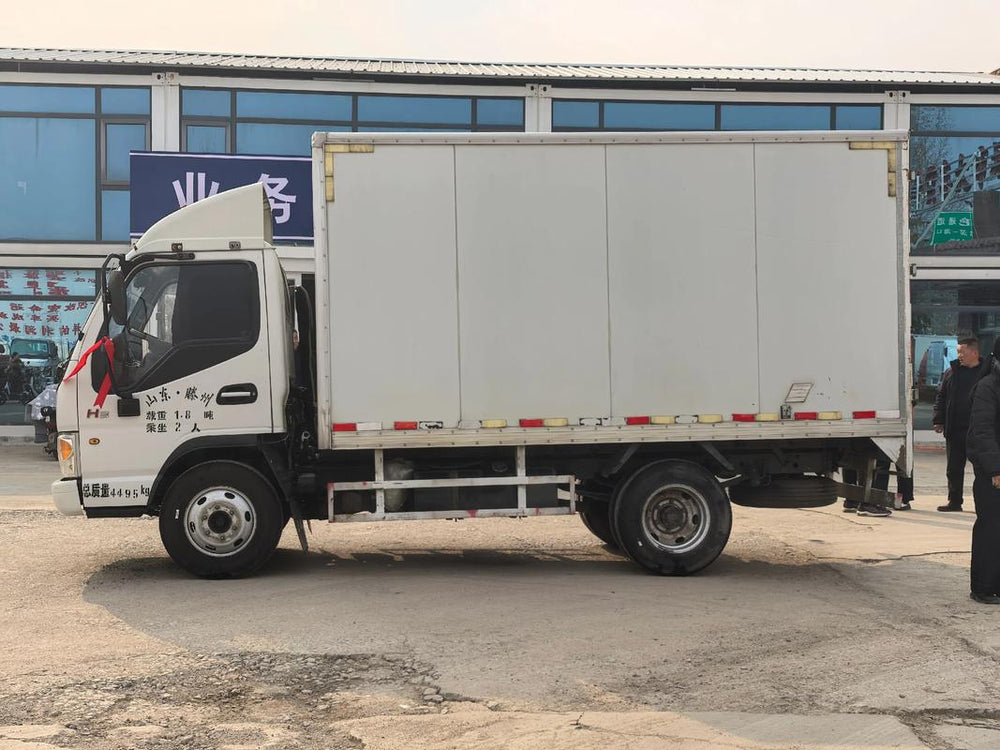

JAC Junling H Box Truck - Full Side View

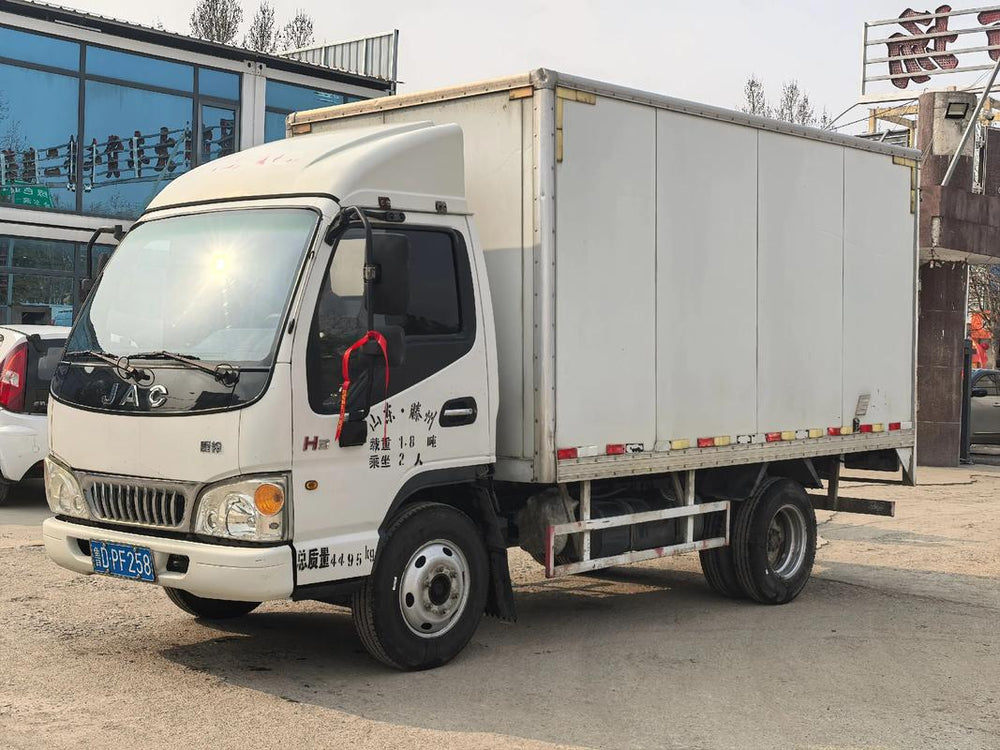

JAC Junling H Box Truck - Front Quarter View
1 / 4
JAC Junling H Box Truck - Rear Side View
JAC Junling H Box Truck - Front View
JAC Junling H Box Truck - Full Side View
JAC Junling H Box Truck - Front Quarter View
Category Item Specification Remarks
Basic Vehicle Information Brand & Model JAC Kangling 3.8m Light-duty Box Van JAC's classic light-duty delivery van
Drive Form 4×2 (1 front steering axle, 1 rear drive axle) Standard two-axle light truck configuration
Overall Dimensions 5995×2000×2200mm Length×Width×Height
Cargo Box Inner Dimensions 3800×1900×1900mm Standard 3.8m cargo compartment
Wheelbase 3360mm Matches 3.8m cargo box design
Gross Vehicle Weight 4495kg Legal blue light truck weight limit
Rated Payload 1800kg As marked on the vehicle body
Seating Capacity 2 persons Single row cab, 2 seats
Vehicle Type Fully enclosed box van For urban logistics, express delivery, goods transportation
Emission Standard China V / China VI optional Meets national emission regulations
Engine & Powertrain Parameters Engine Model JAC HFC4DB2-1D / Yunnei D20TCIF Optional diesel engine
Fuel Type Diesel Light-duty truck standard fuel
Cylinder Number 4 cylinders, inline layout Stable power output
Maximum Output Power 95kW (130HP) Matched for light load delivery
Maximum Torque 320N·m Low-speed torque for urban driving
Displacement 2.0L Fuel-efficient for daily operation
Transmission 5-speed manual synchronized transmission Smooth shifting, easy to operate
Clutch Diaphragm spring dry clutch Durable for frequent start-stop driving
Chassis Configuration Chassis Brand JAC Light-duty Truck Special Chassis Factory original chassis
Front Axle 2-ton rated load capacity Standard light-duty front axle
Rear Axle 3.5-ton rated load capacity Enhanced load capacity for full load transportation
Tire Specification 7.00R16 steel radial tires, 6 units total Wear-resistant, long service life
Brake System Dual-circuit hydraulic brake with ABS + EBD Safe braking for full load
Steering System Hydraulic power steering Light & flexible operation
Fuel Tank Capacity 80L Large capacity for long-distance continuous operation
Suspension System Front leaf spring independent suspension, rear leaf spring non-independent suspension Comfortable ride, stable load bearing
Cargo Box Superstructure Box Material High-quality galvanized steel plate Anti-rust, impact-resistant, long service life
Box Structure Fully enclosed sealed cargo compartment, rear double swing doors Dustproof, rainproof, protect goods from damage
Box Volume Approximately 13.7m³ Large space for cargo loading
Auxiliary Fittings Red-white reflective strips around the box, side anti-collision guardrails, top wind deflector Meet road traffic safety standards, reduce wind resistance
Optional Customization Left/right side sliding door or swing door For easy side loading and unloading
Standard Cab Interior & Safety Configuration Cab Type Single row cab, 2 seats Large space, wide vision
Standard Interior Factory installed air conditioning, power windows, central door lock, adjustable seats Factory standard configuration
Steering Wheel Multifunctional steering wheel with horn control Easy to operate
Lighting System Composite halogen headlamps, side marker lamps, rear brake & warning lights Meet road lighting requirements
Safety Configuration ABS anti-lock braking system, EBD electronic brakeforce distribution, 3-point seat belts for all occupants Standard safety configuration
Optional Upgrade & Customization Items Cargo Box Upgrade Stainless steel box, refrigerated insulated box, customized side door design For cold chain, fragile goods, special cargo delivery
Safety Upgrade Reversing camera, tire pressure monitoring system, lane departure warning Reduce driving blind spots, improve driving safety
Comfort Upgrade Leather seats, multimedia player with reverse image, cruise control Improve long-distance driving comfort
Export Customization Right-hand drive (RHD) modification, overseas emission standard calibration, full set of export inspection documents For cross-border logistics, overseas urban distribution business
